Urea Breath Test (UBT): Principle, Procedure, and Results

A patient finishes a course of triple therapy for a Helicobacter pylori ulcer and wants to know if the bacteria are gone. A blood antibody test will not answer this, because antibodies can stay positive for months after the organism is dead. What the clinician needs is a test that detects only living, active infection. The urea breath test does exactly that. It listens for a live enzyme working in the stomach, which is why it can confirm both a new infection and a cure.

The urea breath test (UBT) is a non-invasive test for diagnosing active infection with Helicobacter pylori, the main cause of gastric and duodenal ulcers. Helicobacter pylori is a fastidious bacterium that produces large amounts of the enzyme urease. Urease splits urea in the stomach into ammonia and carbon dioxide. The ammonia raises the pH around the organism, which lets it survive in the acidic stomach. The urea breath test uses this urease activity to detect the organism.

The test is highly accurate for both the first diagnosis of infection and for confirming eradication after treatment. Because it detects a live enzyme, a positive result means the organism is present and active, not merely that the patient was exposed in the past.

Principle of the urea breath test

The patient swallows a measured dose of urea in which one carbon atom has been labeled with a carbon isotope. If Helicobacter pylori is present in the stomach, its urease splits the labeled urea, releasing labeled carbon dioxide. This labeled carbon dioxide is absorbed into the blood, carried to the lungs, and breathed out.

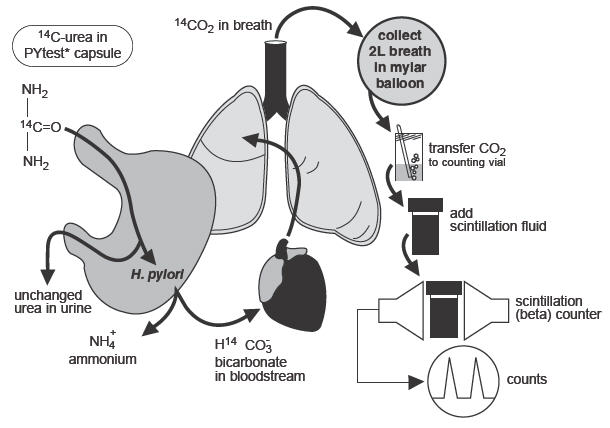

Figure: Urea breath test working principle

The instrument measures the labeled carbon dioxide in the exhaled breath. If the organism is absent, the urea is not split, almost no labeled carbon dioxide appears in the breath, and any unused urea is later passed in the urine.

Two isotopes are used to label the urea, and the choice between them matters.

1. 13C-urea (the modern standard). 13C is a stable, non-radioactive isotope of carbon. It is the preferred form worldwide because it gives off no radiation, which means it can be used safely in children, in pregnant women, and repeatedly in the same patient. The labeled carbon dioxide is measured by mass spectrometry or by infrared spectroscopy. The main drawback is cost, because the analyzer is expensive.
2. 14C-urea (the lower-cost option). 14C is a radioactive isotope. The dose of radiation is very small, roughly the amount a person receives from natural background sources in a day, and the test is cheaper and simpler, which makes it common in resource-limited settings. However, because it involves radiation, the 14C test is generally avoided in children and in pregnant women, and it requires a license for handling and disposal of radioactive material. The labeled carbon dioxide is usually measured by a scintillation counter.

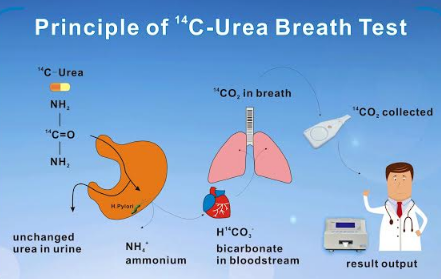

Figure: Principle of 14C Urea Breath Test

The two versions answer the same clinical question in the same way. They differ in the label, the detector, the cost, and who can safely be tested.

How the result is measured and read

For the 13C test, the patient gives a breath sample before swallowing the urea (the baseline) and a second sample afterward, usually at about 30 minutes. The result is reported as the delta over baseline (DOB), which is the rise in labeled carbon dioxide from the baseline sample to the post-dose sample. A test meal containing citric acid is often given first, because it delays stomach emptying and improves accuracy.

For the 14C test, the patient swallows a 14C-urea capsule and a breath sample is collected, commonly around 10 to 15 minutes later, and the labeled carbon dioxide is counted.

Interpreting the result. A raised value means urease is active in the stomach, which indicates Helicobacter pylori infection. For the 13C test, a common cutoff is a DOB greater than 4 per mil (‰), though some kits use a different value, so the result is always read against the cutoff stated by the manufacturer. Values well above the cutoff are clearly positive. Values just above it can fall in a gray zone (often quoted as 4 to 10‰) where a borderline result may need repeating to avoid unnecessary antibiotic treatment. A value below the cutoff is negative, meaning no active infection was detected.

A positive result indicates active infection and supports treatment. A negative result, when the test has been done with correct preparation, reliably rules out active infection.

Why UBT is preferred over antibody testing

Blood antibody (serology) tests detect antibodies to Helicobacter pylori, but antibodies remain in the blood for months after the organism has been cleared. Serology therefore cannot distinguish a current infection from a past one, and it cannot confirm a cure. The urea breath test detects only living, active organisms. This is why it is the non-invasive test of choice both before treatment and to confirm eradication.

Patient preparation

Correct preparation is essential, because several common medicines and recent food can suppress the organism or its enzyme and produce a false negative. Patients should be told the following before testing (specific instructions should follow the clinician and the kit):

• Do not eat or drink, including water, for at least 4 to 6 hours before the test.
• Do not smoke for at least 2 hours before the test.
• Stop antibiotics, including any Helicobacter pylori treatment, for at least 4 weeks before the test.
• Stop proton pump inhibitors (acid-suppressing drugs) for at least 1 to 2 weeks before the test.

The reason for the drug rules is important. Antibiotics and proton pump inhibitors suppress the organism without necessarily eradicating it. If the patient is tested too soon after taking them, the suppressed organism may not produce enough labeled carbon dioxide to cross the cutoff, and the test can read falsely negative in a patient who is still infected.

For the same reason, when the test is used to confirm a cure, it should be performed at least 4 weeks after finishing antibiotics, so that a genuinely eradicated infection is not confused with a temporarily suppressed one.

Sample collection (14C capsule example)

The exact steps depend on the kit. A typical 14C collection card procedure is:

1. Swallow one 14C-urea capsule with water on an empty stomach, or at least 4 hours after eating.
2. Sit quietly for 10 to 15 minutes.
3. Connect the mouthpiece to the collection card body.
4. Blow steadily through the mouthpiece. Breathe normally between blows, but do not inhale through the mouthpiece.
5. Continue blowing until the indicator on the collection card changes color, which shows enough breath has been collected.
6. Hand the collection card to the operator for analysis.

For the 13C test, the equivalent steps involve a baseline breath sample, swallowing the 13C-urea (often with a citric acid test meal), and a second breath sample at about 30 minutes.

Uses of the urea breath test

• Diagnosing active infection. A positive result confirms that the patient is currently infected with Helicobacter pylori, which supports starting treatment. Because it detects active infection only, it helps avoid treating patients who are antibody-positive but no longer infected.
• Confirming eradication after treatment. The urea breath test is the non-invasive test of choice for confirming a cure. It can demonstrate eradication as early as 4 weeks after treatment ends, whereas antibodies may stay positive for six months or more.
• Monitoring in place of endoscopy. It provides a non-invasive alternative to endoscopic biopsy for patients who do not otherwise need endoscopy.

Limitations and causes of false results

• False negatives occur when antibiotics, proton pump inhibitors, or bismuth have suppressed the organism, or when the patient has not fasted correctly. Recent upper gastrointestinal bleeding can also lower sensitivity.
• False positives are uncommon but can occur when other urease-producing organisms are present in the stomach, for example in patients with achlorhydria (very low stomach acid).
• Borderline (gray zone) results near the cutoff may need repeat testing to confirm the true status.
• The test tells you that active infection is present or absent. It does not show where in the stomach the organism is, and it does not assess ulcer severity or complications, which require endoscopy.

Safety

The 13C test uses a stable, non-radioactive isotope and is considered safe in children and in pregnancy. The 14C test involves a very small radiation dose, on the order of the natural background radiation received in about a day, but because it is radioactive it is generally avoided in children and pregnant women, and 13C is used instead for these groups.

How to Remember

Urease is the target, not the bacterium. The test never sees the organism directly. It detects the organism's enzyme at work, which is why it only turns positive when the infection is alive and active.

13C is safe, 14C is radioactive. The lower number, 13, is the non-radioactive one that is safe in pregnancy and children. The higher number, 14, carries the radiation.

Antibodies linger, breath does not. Antibody tests stay positive after cure. The breath test goes negative once the organism is gone, so it is the one that confirms eradication.

Stop the acid blockers first. Proton pump inhibitors and antibiotics suppress the organism and cause false negatives, so they must be stopped before testing.

Key exam facts

Where Students Get Confused

"A positive urea breath test means the same as positive serology." No. Serology detects antibodies, which persist after the organism is cleared. The urea breath test detects active infection. A patient can be serology-positive but breath-test-negative because the infection is gone.

"The 14C test is safe in pregnancy because the dose is tiny." No. Although the radiation dose is small, the 14C test is radioactive and is avoided in children and pregnant women. The 13C test, which is non-radioactive, is used for these groups.

"You can test right after finishing antibiotics." No. Antibiotics and proton pump inhibitors suppress the organism and cause false negatives. Confirmation of cure should wait at least 4 weeks after treatment, and acid-suppressing drugs should be stopped before any UBT.

"The test detects the bacterium." Not directly. It detects the carbon dioxide produced by the bacterium's urease enzyme. This is why only a live, active infection gives a positive result.

"A negative result rules out any stomach disease." No. A negative UBT rules out active Helicobacter pylori infection when preparation was correct. It does not assess ulcers, bleeding, or other stomach conditions, which need endoscopy.

References and further reading

• Sankararaman, S., and Moosavi, L. (2024). Urea Breath Test. In StatPearls. StatPearls Publishing. Available from https://www.ncbi.nlm.nih.gov/books/NBK542286/
• Tille, P. M. (2022). Bailey and Scott's Diagnostic Microbiology (15th ed.). Elsevier.
• Gisbert, J. P., and Pajares, J. M. (2004). Review article: 13C-urea breath test in the diagnosis of Helicobacter pylori infection, a critical review. Alimentary Pharmacology and Therapeutics, 20(10), 1001–1017.
