Laboratory Diagnosis of Haemophilus influenzae

Last updated on June 17th, 2021

Most Haemophilus species are normal inhabitants of upper respiratory tract of humans and other animals. The species of Haemophilus that most frequently cause human infections are H. influenzae (respiratory and invasive infections), H. aegyptius (acute conjunctivitis), H. parainfluenzae, H. haemolyticus, H. parahaemolyticus, H. aprophilus, H. paraphrophilus and H. segnis (abscesses and infective endocarditis).

  • These are pleomorphic Gram-negative coccobacilli.
  • The laboratory diagnosis of H. influenzae is based on growth and colony morphology in Chocolate Agar, and cell morphology on Gram staining.
  • These are confirmed by the haemophilic character of the genus that reflects a requirement for either or both of the two factors called X and V. The X factor comprises haemin or other iron-containing porphyrins and the V factor comprises nicotinamide adenine dinucleotide (NAD).

Disease

Haemophilus influenzae can cause many kinds of infections. Which can range from mild ear infections to severe diseases, like meningitis. Haemophilus influenzae bacteria most often cause pneumonia, bacteremia, and meningitis mostly in infants and children younger than five years of age.

Note: In spite of its name, Haemophilus influenzae does not cause influenza (the “flu”)

There are six identifiable types of Haemophilus influenzae bacteria (a through f) and other non-identifiable types (called nontypeable). Haemophilus influenzae type b, or Hib is associated with most of the clinical cases for which vaccine is also available.

DiseaseSpeciesSpecimen for culture
MeningitisH. influenzae type bCerebrospinal fluid (CSF); blood
EpiglottisH. influenzae type bBlood; laryngeal secretions
Otitis mediaH. influenzae nontypeable strainsSwab of drainage in ear canal; needle aspiration. If systemic disease is suspected blood/CSF culture is recommended
Acute sinusitisH. influenzae usually nontypeable strains; in rare cases H. parainfluenzae is also involvedSinus aspirates, surgical specimens
Acute Pharyngitis/ laryngotracheobronchitisH. influenzae type bPosterior pharyngeal swab; laryngeal secretions
BronchitisH. influenzae nontypeable strainsSputum; transtracheal aspirates; bronchial washings
PneumoniaH. influenzae type b; incase of elderly patients  nontypeable strains may involveSputum; tracheal aspirates; bronchial washings
EndocarditisH. aphrophilus; H. paraphrophilus; H. parainfluenzae; rarely, H. influenzaBlood
Genital tract infection and postpartum bacteremiaH. influenza nontypeable; H. parainfluenzaeUrethral and endocervical specimens; blood.
ConjunctivitisH. influenza biogroup aegyptiusConjunctival swab
ChancroidH. ducreyiSwab obtained from genital ulcers; aspirates from buboes; endocervical swabs
Brazilian purpuric feverH. influenzae biogroup aegyptiusBlood; conjunctival swabs; skin lesions

Sample

Specimens used for the laboratory diagnosis of Haemophilus influenzae may be

  • Specimens from respiratory tract: Sputum, lung aspirate, pleural fluid
  • Body fluids e.g., Blood/ cerebrospinal fluid
  • Exudates from the joint, middle ear, other sites

Sample Collection

  1. Sputum:
    Collect > 1.0 ml expectorated sputum in a sterile screw-capped container.
  2. Lung aspirate/ pleural fluid
    Collect > 1.0 ml by percutaneous needle aspiration in a sterile screw-capped tube.
  3. Blood:
    Clean the venipuncture site with 70% alcohol and iodine, allow it to evaporate and collect blood aseptically in a culture broth with an anticoagulant. In case of adults, collect 5-10 ml blood in culture bottle, for children < 12 year old, collect 1.5-2.0 ml blood. Mix the blood and broth by rotating gently to avoid clotting.
  4. Cerebrospinal fluid (CSF):
    Clean the skin over L3-L4 inter-space with 70% alcohol and iodine. Collect > 1.0 ml CSF in a sterile screw-capped tube. Keep the CSF in an incubator at 35-37 degree centigrade, if it is not processed immediately.
  5. Exudates from joints/middle ear
    Collect > 1.0 ml by aspiration in a sterile screw-capped tube or add directly in a culture broth used for blood culture.

Note: DO NOT REFRIGERATE THE SAMPLE

Sample Transport

H. influenzae is a fastidious bacteria. Care must be taken during transport of specimen. Specimens must be transported promptly to the laboratory preferably within 1-2 hours.

Blood can only be transported after collecting in a culture broth containing appropriate anticoagulant. The inoculated medium can be held at room temperature (20°C– 25 °C) for 4 – 6 hours before incubation at 37 °C. The samples during transportation should be protected from extremes of temperature (less than 18 °C, more than 30 °C) and direct sunlight.

Direct Examination

  • Perform Gram stain
  • Gram staining shows: Gram negative pleomorphic thin rods or coccobacilli.

Culture

  • Inoculate samples onto chocolate agar media (think why not  Blood Agar or any other media)
  • Incubate at 37°C in aerobic atmosphere containing 5-10% CO2 for 24-48 hours.

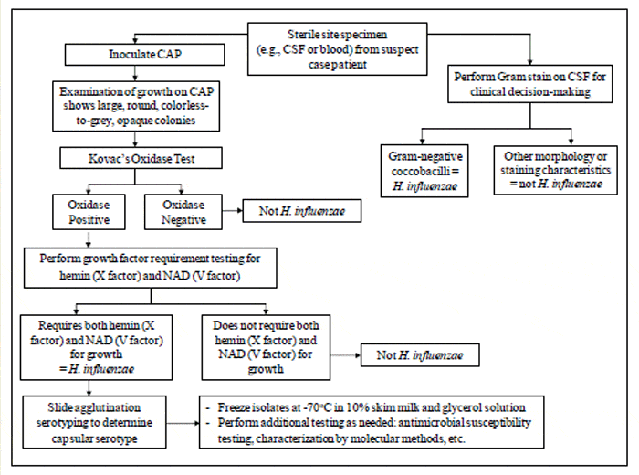

Flow chart Haemophilus influenzae identification
Flow chart Haemophilus influenzae identification

Colony morphology on Chocolate Agar

  • large flat, colourless to gray or opaque colonies.
  • Colonies are 0.5 – 1mm circular, low convex, smooth, pale grey and transparent.
  • With a characteristic “mouse nest” odour. No haemolysis or discolouration is seen.
  • Encapsulated strains appear more mucoid (watery) and non-capsulated strains appear as compact greyish colonies.

 Note:    Growth is enhanced on chocolate agar and satellitism  around Staphylococcus aureus is seen on blood agar.

Biochemical reactions for differentiation.

X and V Factor: Growth is seen around XV Factor only.
X and V Factor: Growth is seen around XV Factor only.

            Confirmatory tests for X and V factor requirements.

  • Inoculate a single suspected colony from chocolate agar onto Mueller Hinton agar plates.
  • Place commercially available X, V, and XV factor discs/strips on streaked plates.
  • Incubate plates at 37°C in 5-10% CO2 atmosphere for 18-24 hours.
  • Observe growth around the discs and H. influenzae will only grow around the combined XV disc.

Note that if only X and V factor discs (without XV) are applied, place them at least 2 cm apart and H. influenzae will grow between the two discs.

Serological identification (serotyping) of Haemophilus influenzae

Agglutinating antisera for serotypes “a” to “f” are available commercially. Such sera contain antibodies directed towards somatic antigens present in the patient’s sera which result in agglutination.

Slide agglutination test.

  • Apply one drop of normal saline on a slide and make a homogenous suspension with a single suspected colony of H. influenzae.
  • Add one drop of specific antiserum and mix thoroughly.
Anti-microbial Sensitivity Testing of H. influenzae in Chocolate Agar
Anti-microbial sensitivity testing of H. influenzae in Chocolate Agar

Reading

  • Observe for agglutination (visible clumping) within 1 minute.

 Interpretation.

  • A visible clumping within 1 minute is indicative of a positive reaction.

 Antimicrobial susceptibility testing.

  • Perform antimicrobial susceptibility test against a selected group of antimicrobials by disk-diffusion method
  • Follow the standard techniques as provided in the manual.
