Yersinia pestis: Plague, Its Pathogenesis, and Laboratory Diagnosis

In the 14th century, a disease swept across Europe and killed roughly a third of its people in a few years. It was called the Black Death. The cause was a single bacterium, Yersinia pestis, carried by fleas living on rats. The same organism still causes plague today, in scattered outbreaks, and it can still kill within days if untreated.

Most students will never grow this organism, because it is so dangerous that it is handled only in high-containment laboratories. But Yersinia pestis is worth understanding, both for what it did to human history and for how it works: how a fleabite becomes a swollen, painful lymph node, how the infection can move to the lungs and then spread person to person through the air, and why it kills so fast. This page is about the organism, the disease it causes, and how it is recognized.

Overview

Yersinia pestis is a Gram-negative rod of the family Enterobacteriaceae, and it causes plague, one of the deadliest infections known. Plague is a zoonosis: it lives naturally in rodents and is carried to humans by fleas. It has caused at least three great pandemics in history, including the 14th-century Black Death, which killed about a third of the population of Europe.

Two routes make it dangerous in different ways. A fleabite causes bubonic plague, a painful swelling of the lymph nodes. If the infection reaches the lungs, it becomes pneumonic plague, which spreads from person to person through the air and is rapidly fatal. Because of this, Y. pestis is treated as a high-risk organism and a potential agent of bioterrorism.

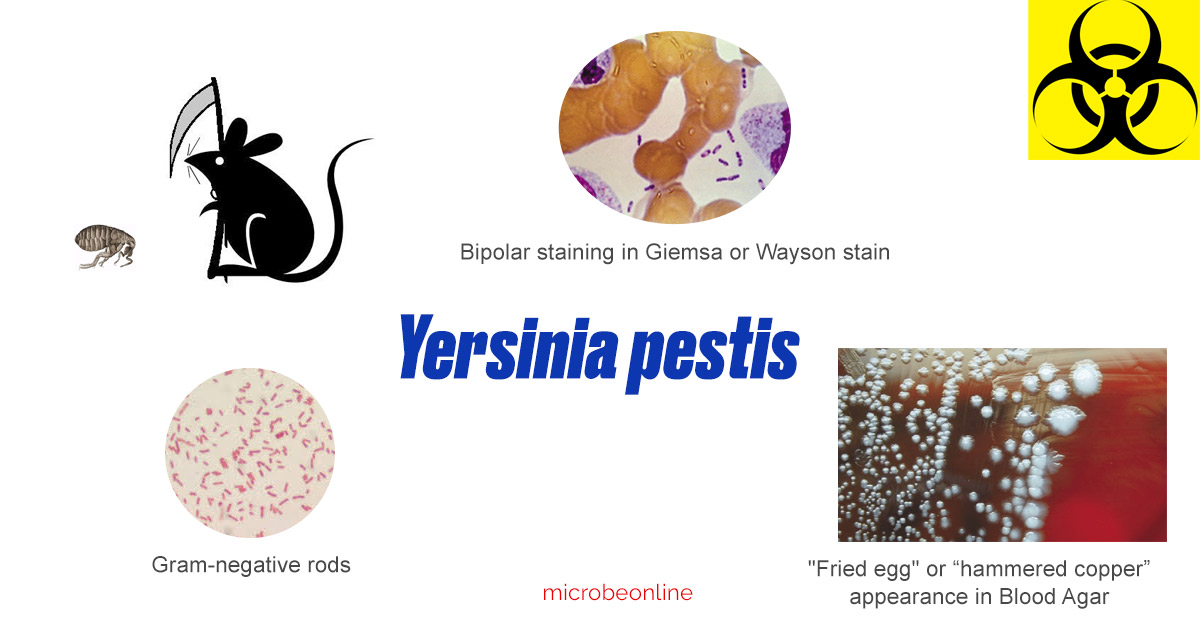

Figure: Yersinia pestis, major features

Virulence factors and how Yersinia pestis causes plague

Yersinia pestis is unusually good at defeating the immune system, which is why plague moves so fast. A few key factors explain it.

F1 capsule. The organism makes a protein capsule (the F1 antigen) that coats it and blocks phagocytosis, so white blood cells cannot easily engulf it. This capsule is produced mainly at body temperature (37°C), that is, once the organism is inside a human, not in the cooler flea. The F1 antigen is also the target of the rapid diagnostic tests described below.

Type III secretion system and Yops. This is the central weapon. Y. pestis builds a molecular needle (a Type III secretion system) that injects a set of proteins called Yops directly into host immune cells. These proteins shut the cell down from the inside: they block phagocytosis, stop the cell from signaling for help, and can trigger the cell to die. In effect, the organism disarms the very cells sent to destroy it. This is why the early infection meets so little resistance.

Plasminogen activator (Pla). At the fleabite site, this enzyme dissolves the barriers that would normally contain an infection, letting the organism spread from the skin into the lymphatics and then the blood. Pla is one reason a local fleabite can become a body-wide infection so quickly.

Temperature sensing. Y. pestis behaves differently at flea temperature (around 25 to 27°C) and human body temperature (37°C). It switches on its main antihost defenses, including the F1 capsule, once it senses it is inside a warm-blooded host. The organism essentially arms itself on entry.

Putting it together

The sequence explains the disease. A flea bites and deposits Y. pestis in the skin. Pla lets it spread from the bite to the nearest lymph nodes. There it resists being killed: the F1 capsule blocks phagocytosis, and the Type III system injects Yops that disable the immune cells that do reach it. The organism multiplies in the lymph node, which swells into the painful bubo of bubonic plague. From there it can enter the blood (septicemic plague) and seed the lungs (pneumonic plague). Because its defenses are so effective, the immune system is overwhelmed quickly, which is why untreated plague can kill within days.

What Yersinia pestis looks like

Staining. On Gram stain, Y. pestis is a Gram-negative rod or coccobacillus, and it is pleomorphic (variable in shape). Its most famous feature appears with Wayson or Giemsa stain: bipolar staining, where the two ends take up more stain than the middle, giving a "safety pin" appearance. This is the classic teaching image for the organism. One honest caution, worth remembering: many bipolar-staining organisms exist, so a safety-pin appearance suggests Y. pestis but does not prove it.

Key biochemical features. Y. pestis is catalase-positive and oxidase-negative (the family pattern). It ferments glucose, mannitol, and maltose with acid but no gas, and does not ferment lactose or sucrose. It is indole-negative, urease-negative, and citrate-negative.

The temperature quirk (high-yield). Two temperature facts set Y. pestis apart:

• Its optimum growth temperature is about 27°C, cooler than most human pathogens, a reminder that its natural home is the flea, not the human.
• It is non-motile at both 25°C and 37°C. This is a useful contrast with the other Yersinia species (Y. enterocolitica and Y. pseudotuberculosis), which are motile at 25°C but non-motile at 37°C. So among the Yersinia, only Y. pestis is non-motile at the cooler temperature.

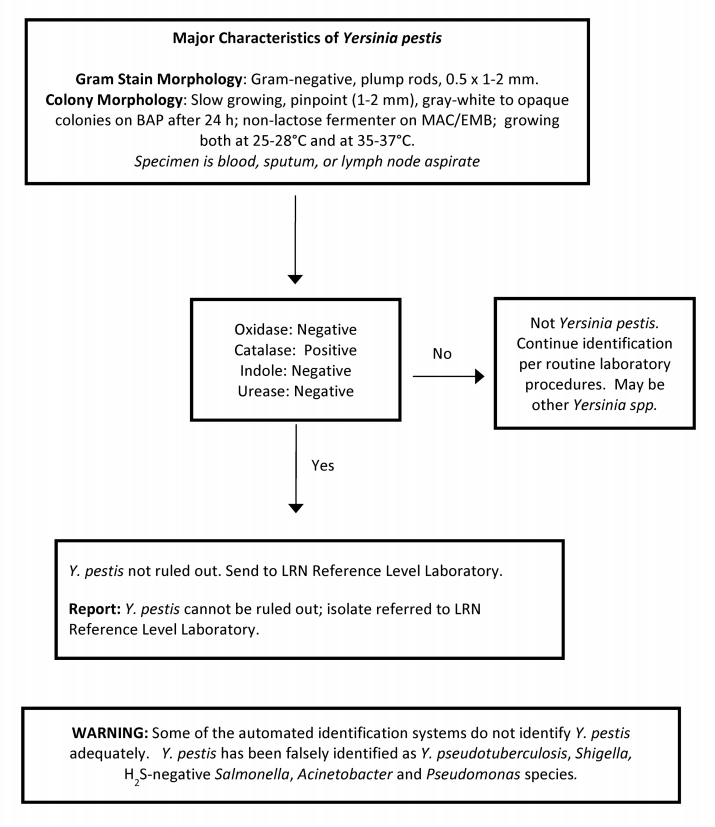

Figure: Y. pestis identification flowchart. Image source: Laboratory Response Network (LRN)

Clinical Disease and Manifestations

Transmission

Human can be infected by plague through:

1. Bite of infected rat fleas (human fleas may rarely serve as a vector).
2. Direct unprotected contact with tissues or bodily fluids of an infected animal (rodents) or contaminated materials.
3. Inhalation of contaminated airborne droplets from cases of pneumonic plague.

Plague exists in two natural cycles:

1. Domestic cycle: It occurs between humans, rat fleas, and rodents.
2. Wild or sylvatic cycle: It occurs in nature among wild rodents, independent of human beings.

Human plague occurs in three clinical forms;

1. Bubonic plague: It is the most common type, transmitted by the bite of infected vector fleas. Bubonic plague is characterized by high fever and painful inflammatory swellings of axilla and groin lymph nodes (i.e. the characteristics buboes). Bubonic plague does not usually spread directly from person to person, because the bacteria are largely contained in the buboes. But if untreated it can progress to bloodstream and lung infection, which is frequently fatal.

Regional lymph nodes appear as tense, tender swellings called buboes; the most common site being inguinal, but also be crural, axillary, cervical, or submaxillary, depending on the site of the bite. Children are most likely to present with cervical or axillary buboes.

2. Pneumonic plague: Pneumonic plague occurs as a consequence of bacteremic spread associated with bubonic plague or can be acquired by the airborne route during close contact with other pneumonic plague victims. The incubation period is 1-3 days, and infected individuals showed fever, headache, and respiratory symptoms (productive cough or hemoptysis, dyspnea, and chest pain). Pneumonic plague is highly infectious and is also rapidly fatal.

3. Septicemic plague: It mostly develops as a consequence of bubonic or pneumonic plague. Widespread infection of the blood vessels causes bleeding into the skin, which can turn black from tissue death (gangrene). This blackening is the origin of the name Black Death

Laboratory Diagnosis of Plague

Y. pestis is a high-risk select agent; any suspected culture must be handled in a BSL-3 laboratory and referred to a reference/public-health laboratory. If a laboratory unexpectedly grows it, work should stop and the isolate be referred.

Specimen

bubo aspirate, sputum, or blood depending on the form; Cary-Blair for transport.

Figure: Bipolar appearance of Yersinia pestis in Giemsa stain

Direct microscopy

Gram stain shows pleomorphic Gram-negative coccobacilli with a capsule; Wayson or Giemsa shows the bipolar safety-pin appearance.

Culture

Y. pestis is not fastidious and grows on ordinary media (blood agar, MacConkey) but slowly and best at about 28°C. On blood agar the colonies are small and non-hemolytic, and after a couple of days develop a beaten or "hammered copper" surface, sometimes described as a fried-egg shape. In broth it forms clumps that cling to the side of the tube (a "stalactite" pattern). These appearances are characteristic but slow, which is one reason rapid antigen tests are now preferred.

Figure: Yersinia pestis growth on Blood Agar A. 48 hours, B. 72 hours, C. 96 hours, and D. 96 hours “fried egg”

Identification

If an isolate is grown and confirmed in a reference laboratory, this is the biochemical pattern that identifies it. The combination that points to Y. pestis is a non-motile, urease-negative, indole-negative, non-lactose-fermenting Gram-negative rod with bipolar staining.

Antigen detection

F1 antigen detection is the practical rapid test. A rapid immunochromatographic test (a dipstick, similar in idea to a rapid COVID or malaria test) detects the F1 capsular antigen directly from a bubo aspirate or sputum in minutes, which is invaluable in the field where plague outbreaks occur. ELISA and immunofluorescence can also detect F1.

Serological techniques

Antibodies against the F1 antigen can be detected by passive hemagglutination or complement fixation test or ELISA. The use of paired sera and the presence of a four-fold rise in titer confirms the diagnosis. The presence of antibodies provides limited diagnostic value, as the diagnosis is retrospective but may help as an epidemiological marker.

Other methods

Rapid diagnostic tests, Immunofluorescence antibody test, Real-time Polymerase Chain reaction (PCR) can be used to identify Yersinia isolates to species level. PCR is available targeting gene coding F1 antigen, pesticin gene, and the plasminogen activator gene.

Typing

Typing and differentiation between strains of Yersinia species can be achieved using a range of molecular techniques eg multiple-locus variable-number tandem-repeat analysis, pulsed-field gel electrophoresis (PFGE), whole-genome sequencing (WGS), etc. Biotyping is done based on glycerol fermentation and nitrate reduction.

How to remember

Safety pin, two dark ends. Picture a safety pin: metal at both ends, gap in the middle. That is the bipolar staining of Y. pestis on Giemsa or Wayson stain, two dark ends with a pale center. But the safety-pin appearance does not confirm plague, as other organisms stain this way too. It points, it does not prove.

It runs cold. Y. pestis prefers about 27°C, cooler than most human pathogens, because its real home is the flea, not you. And it is the one Yersinia that does not move even in the cold: non-motile at both 25°C and 37°C, while the others swim at 25°C.

The needle and the disguise. Two virulence ideas anchor the pathogenesis: the F1 capsule is the disguise (it hides the organism from phagocytes), and the Type III secretion system is the needle (it injects Yops that shut down immune cells). Disguise plus needle is why plague meets so little resistance early.

Black Death, black skin. In septicemic plague, bleeding into the skin and tissue death turn the skin black. That is where the name Black Death comes from.

Three forms, one progression. Bubo (fleabite, lymph node) → blood (septicemic) → lungs (pneumonic, and now airborne and person-to-person). The disease moves outward from the bite, and only the lung form spreads between people through the air.

Key exam facts in one table

Where students get confused

Bipolar staining is not proof. The safety-pin appearance is classic for Y. pestis, but other organisms stain the same way. It is a strong pointer that must be confirmed, not a diagnosis on its own. All Y. pestis may look bipolar, but not all bipolar cells are Y. pestis.

The temperature facts get mixed up. Two separate points: the organism grows best at about 27°C, and it is non-motile at both temperatures. The contrast is with the other Yersinia species, which are motile at 25°C but not at 37°C. Only Y. pestis is non-motile in the cold.

Which forms spread between people. Bubonic plague does not usually pass directly person to person; it comes from a fleabite. Only pneumonic plague spreads through the air between people. This distinction matters for outbreak control and is a common exam point.

F1 antigen has two roles. F1 is both a virulence factor (the antiphagocytic capsule) and the target of the rapid diagnostic test.

"Enterobacteriaceae" but not a gut disease. Y. pestis belongs to the same family as E. coli and Salmonella, and shares the family biochemistry (oxidase-negative, and so on), but it causes a flea-borne systemic disease, not gastroenteritis. Family membership is about shared biology, not shared disease. (The other two Yersinia species, Y. enterocolitica and Y. pseudotuberculosis, do cause gut infection.)

References

1. Tille, P. M. (2022). Bailey & Scott's Diagnostic Microbiology (15th ed.). Elsevier.
2. Procop, G. W., et al. (2017). Koneman's Color Atlas and Textbook of Diagnostic Microbiology (7th ed.). Wolters Kluwer.
3. World Health Organization. (2017). Plague (Fact sheet). World Health Organization.
4. Perry, R. D., & Fetherston, J. D. (1997). Yersinia pestis: etiologic agent of plague. Clinical Microbiology Reviews, 10(1), 35–66. https://doi.org/10.1128/CMR.10.1.35
