Sanger Sequencing (Dideoxy Chain-Termination Method): Principle, Steps, and Uses

Sanger sequencing is a method for reading the exact order of bases (A, T, G, C) in a piece of DNA. It was developed by Frederick Sanger in 1977 and is also called the dideoxy method or the chain-termination method. It was the technique used to complete the first human genome, and despite the rise of faster methods, it remains the reference standard for accuracy when a single, specific stretch of DNA needs to be read reliably.

The method works on one clever idea: special bases that, once added to a growing DNA strand, stop it from growing any further. By controlling where these stops happen, the sequence can be read off directly.

Single-stranded DNA molecules, DNA polymerase, four deoxyribonucleotide triphosphates (dNTPs; dATP, dCTP, dGTP, and dTTP), and dideoxyribonucleotides triphosphates (ddNTPs; ddATP, ddCTP, ddGTP, and ddTTP) labeled with various fluorescent markers are the essential components for sequencing.

Principle of Sanger Sequencing

To understand Sanger sequencing, start with how DNA polymerase adds a base.

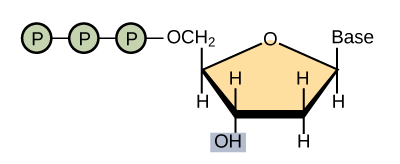

When DNA polymerase extends a strand, it joins the incoming nucleotide to the growing chain by linking the 3′-OH group (a hydroxyl group on the 3′ carbon of the last sugar) to the phosphate of the new nucleotide. That 3′-OH group is essential. Without it, the polymerase has nothing to attach the next base to, and the chain cannot grow.

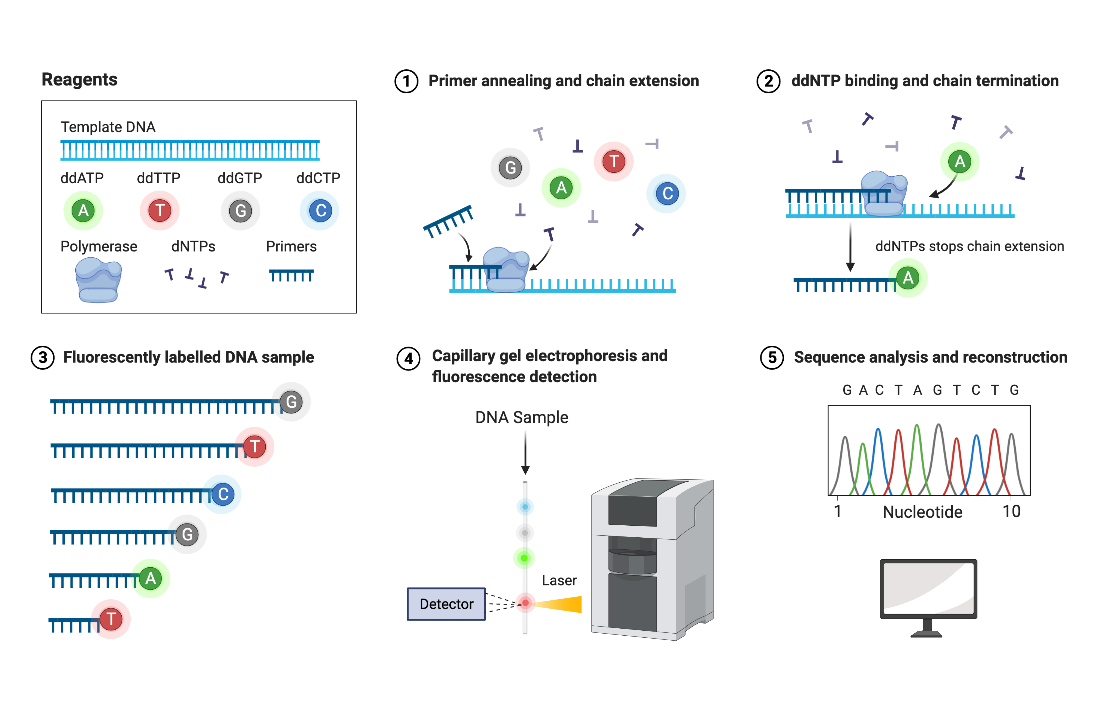

Figure: Process of Sanger Sequencing

Sanger sequencing exploits exactly this. It uses two kinds of building blocks:

• Normal nucleotides (dNTPs): the usual A, T, G, C. Each has a 3′-OH group, so the chain keeps growing after one is added.
• Dideoxynucleotides (ddNTPs): modified versions that are missing the 3′-OH group (they have a hydrogen there instead). When one of these is added, there is no 3′-OH for the next base to attach to, so the chain stops. This is why they are called chain terminators.

Now the trick. The reaction contains a large amount of normal dNTPs and only a small amount of ddNTPs. Most of the time the polymerase adds a normal base and keeps going. But every so often, at random, it adds a ddNTP instead, and that strand stops right there. Because this happens at random positions across millions of template copies, you end up with a huge collection of DNA fragments of every possible length, and each fragment ends in a ddNTP whose identity you can detect.

Here is the payoff. A fragment that stopped after 1 base ends in whatever base is at position 1. A fragment that stopped after 2 bases ends in the base at position 2. And so on. If you sort all the fragments by length, from shortest to longest, and read off the terminating base of each one in order, you have read the sequence directly. The shortest fragment tells you the first base, the next tells you the second, and reading up the ladder spells out the whole sequence.

That is the entire principle: stop the chain at every possible position, sort the pieces by size, and read the last base of each piece in order.

Components of a Sanger Sequencing Reaction

A Sanger reaction needs the following:

• A single-stranded DNA template: the DNA whose sequence you want to read.
• A primer: a short sequence that binds the template and gives the polymerase a starting point.
• DNA polymerase: the enzyme that builds the new strand.
• The four normal nucleotides (dNTPs): dATP, dTTP, dGTP, dCTP, the building blocks.
• The four dideoxynucleotides (ddNTPs): ddATP, ddTTP, ddGTP, ddCTP, the chain terminators, each usually tagged with a different fluorescent color in the modern method.
• Buffer: to keep the reaction conditions right for the enzyme.

The key point is the ratio: many normal dNTPs, few ddNTPs. That balance is what produces fragments of every length rather than stopping every strand at the first base.

Steps Involved in Sanger Sequencing

1. Denaturation. The double-stranded DNA is heated to separate it into single strands, so the template is available for the primer and polymerase.

Figure: Annealing of primer to the template DNA (Source: Brown, TA. Gene Cloning And DNA  Analysis An Introduction)
2. Primer binding. A primer binds to the template at a defined starting point.

3. Chain extension and termination. DNA polymerase extends the new strand by adding normal nucleotides. At random positions, a ddNTP is added instead, and that strand stops growing. Across millions of copies, this produces a nested set of fragments of every possible length, each ending in a ddNTP.

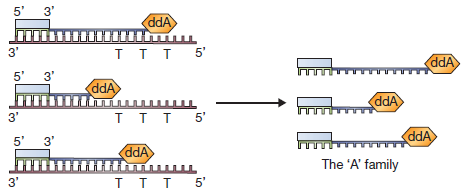

Figure: Elongation of DNA molecule and termination after the addition of ddATP (Source:  Brown, TA. Gene Cloning And DNA Analysis An Introduction)

4. Separation by size. The fragments are separated by length using electrophoresis. Modern machines use capillary electrophoresis, where fragments move through a thin tube and the smallest travel fastest. Older methods used a polyacrylamide gel.

5. Detection and reading. As each fragment passes a laser, the fluorescent tag on its terminating ddNTP is detected. Each of the four bases has its own color. The machine records the colors in order of fragment size and produces a chromatogram, a series of colored peaks that spells out the sequence.

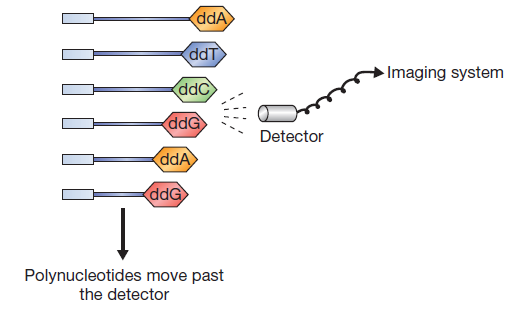

Figure: Detection of each sequences of DNA passed through the detector (Source: Brown, TA.  (2010). Gene Cloning And DNA Analysis An Introduction.)

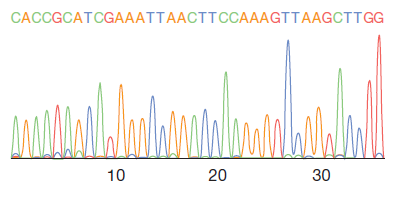

Figure: DNA sequences in a graph form detector (Source: Brown, TA. (2010). Gene Cloning And  DNA Analysis An Introduction. )

Traditional and Automated Sanger Sequencing

The original 1977 method and the modern automated version work on the same principle but differ in setup.

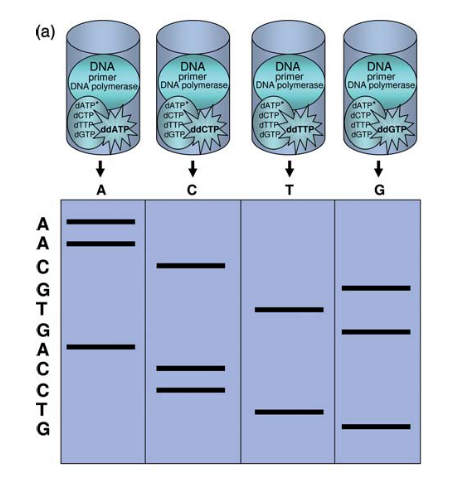

• Traditional method: The reaction was split into four separate tubes, one for each ddNTP (one tube for ddATP, one for ddTTP, and so on). The fragments were run in four lanes of a gel, and the sequence was read by comparing the four lanes. Detection used radioactive labels.
• Automated method: All four ddNTPs are combined in a single tube, each tagged with a different fluorescent color. The fragments run through one capillary, and a laser reads the color of each terminating base. This is faster, safer, and is what sequencing machines use today.

Applications of Sanger Sequencing

Even though newer methods can sequence far more DNA at once, Sanger sequencing is still widely used, and for good reasons.

• Confirming variants found by next-generation sequencing. NGS can scan huge amounts of DNA quickly but makes occasional errors. When NGS flags an important change, Sanger sequencing is often used to confirm it, because it is highly accurate on a single target. This is why Sanger is called the gold standard for validation.
• Checking a specific known mutation. When only one gene or one small region needs to be read, such as confirming a disease-causing mutation, Sanger is fast, cheap, and reliable.
• Sequencing small pieces of DNA. Verifying a cloned gene, a plasmid insert, or a PCR product.
• Identifying microorganisms. Reading conserved genes such as 16S rRNA to identify bacteria.
• Small research projects where the amount of DNA to be read is limited.

The simple rule for when to use which: Sanger for reading one target very accurately, next-generation sequencing for reading a great deal of DNA at once. The two are partners, not just rivals.

Limitations of Sanger Sequencing

Although the Sanger sequencing is the preferable method of DNA sequencing it has some limitations, which are as follows:

• It only sequences short fragments of DNA of about 300-1kb bases.
• Cannot detect different genes simultaneously.
• It requires a more significant amount of DNA as an input.
• As primer binds to the first 15 – 40 bases, the quality of sequences in this region is often poor.
• It is a time-consuming method.
• If the traditional method is used, the cloning vector sequences may be present in the final sequences.

How to Remember

The whole method: the base that ends the sentence. A ddNTP is a full stop. Normal bases keep the sentence going; a ddNTP ends it. Because the reaction has only a few full stops mixed in, sentences end at every possible length, and lining them up by length lets you read the sentence one letter at a time.

Why ddNTP stops the chain: no 3′-OH, no next base. The polymerase attaches the next base to the 3′-OH group. A ddNTP has no 3′-OH (it has an H there), so there is nothing to attach to. Missing hydroxyl, chain stops. Remember it as "dd = dead end."

Reading direction: shortest first. The smallest fragment terminated earliest, so it carries the first base. Read from the shortest fragment upward and the sequence appears in order.

Sanger vs NGS in one line. Sanger for one target, read very accurately. NGS for a mountain of DNA at once. Sanger still confirms what NGS finds.

Key exam facts in one table

Where Students Get Confused

"What is the difference between a dNTP and a ddNTP?" A dNTP is a normal nucleotide with a 3′-OH group, so the chain keeps growing after it is added. A ddNTP is missing that 3′-OH group (it has a hydrogen instead), so the chain stops as soon as one is added. That single missing group is the entire basis of Sanger sequencing.

"Why does the chain actually stop?" DNA polymerase joins the next base by attaching it to the 3′-OH group of the previous one. If the previous nucleotide is a ddNTP, there is no 3′-OH to attach to, so the polymerase cannot add anything more. The strand ends there.

"How does stopping the chain tell you the sequence?" Because the reaction has only a small amount of ddNTPs, chains stop at random positions, giving fragments of every possible length. Each fragment ends in a ddNTP whose base you can identify by its color. Sort the fragments by length and read the end base of each in order, and you have the sequence: the shortest fragment gives the first base, the next gives the second, and so on.

"Why put only a little ddNTP in?" If there were too much ddNTP, almost every chain would stop at the very first position, and you would only ever learn the first base. Keeping ddNTPs rare means most positions are usually reached by normal nucleotides, so across the whole population of strands, every position is terminated in some fraction of the fragments. That is what gives a complete ladder.

"Is Sanger sequencing obsolete now that NGS exists?" No. NGS reads far more DNA at once, but Sanger is more accurate on a single target and is still used to confirm important NGS findings and to read single genes or mutations. They are used together.

"Traditional four-tube versus modern one-tube: what changed?" The principle is identical. The traditional method used four separate tubes (one ddNTP each) read across four gel lanes with radioactive labels. The modern method combines all four ddNTPs in one tube, each with a different fluorescent color, read through a single capillary. Only the format and detection changed, not the chemistry.

References

1. Sanger F., Nicklen S., Coulson A.R. (1977). DNA sequencing with chain-terminating inhibitors. Proceedings of the National Academy of Sciences, 74(12), 5463–5467. https://doi.org/10.1073/pnas.74.12.5463
2. Brown T.A. (2018). Genomes 4 (4th ed.). Garland Science / CRC Press.
3. Watson J.D., Baker T.A., Bell S.P., Gann A., Levine M., Losick R. (2013). Molecular Biology of the Gene (7th ed.). Cold Spring Harbor Laboratory Press / Pearson.
4. Buckingham L. (2019). Molecular Diagnostics: Fundamentals, Methods, and Clinical Applications (3rd ed.). F.A. Davis.
5. Crossley B.M., Bai J., Glaser A., et al. (2020). Guidelines for Sanger sequencing and molecular assay monitoring. Journal of Veterinary Diagnostic Investigation, 32(6), 767–775. https://doi.org/10.1177/1040638720905833
