Colony Counter: Types, Principle, Uses, and How Colonies Are Counted

Why Colony Counter?

It is a Monday morning in a busy clinical lab. The overnight urine cultures are out of the incubator, and there are two hundred plates to read. A significant bacteriuria call depends on the count: is this plate above or below the 10⁵ CFU/mL threshold that separates infection from contamination? Counting each plate by eye, colony by colony, for the whole run, the third technologist of the morning is already blinking through fatigue, and their count on a crowded plate no longer matches what a colleague would get on the same plate.

That gap, between what one tired human counts and what the plate actually holds, is the entire reason colony counters exist. They do not change the biology. They make the count faster, more consistent between operators, and reproducible enough to trust a clinical or a release decision on. The instrument you reach for, a felt-tip manual counter, a pressure-pad digital counter, or a camera-and-software automated system, is really a choice about how much of that human variability you are willing to design out.

Taking a total viable count (or total microbial count) is a routine procedure in clinical, food, dairy, water, and pharmaceutical microbiology, and the result often feeds a decision: whether a urine sample crosses the significant-bacteriuria threshold, whether drinking water passes, or whether a pharmaceutical batch is released.

Traditional manual methods for enumerating bacterial colonies (or colony forming units) are labor-intensive and tiresome processes requiring sustained concentration level. Colony counter provides an alternative sustainable solution to this problem by helping in fast and accurate counting of colonies.

A colony counter is an instrument used to count colonies of bacteria or other microorganisms growing on an agar plate. Various types of colony counters are available to enumerate colonies of bacteria and yeast quickly and consistently. They fall into three tiers, from fully manual to fully automated, described below.

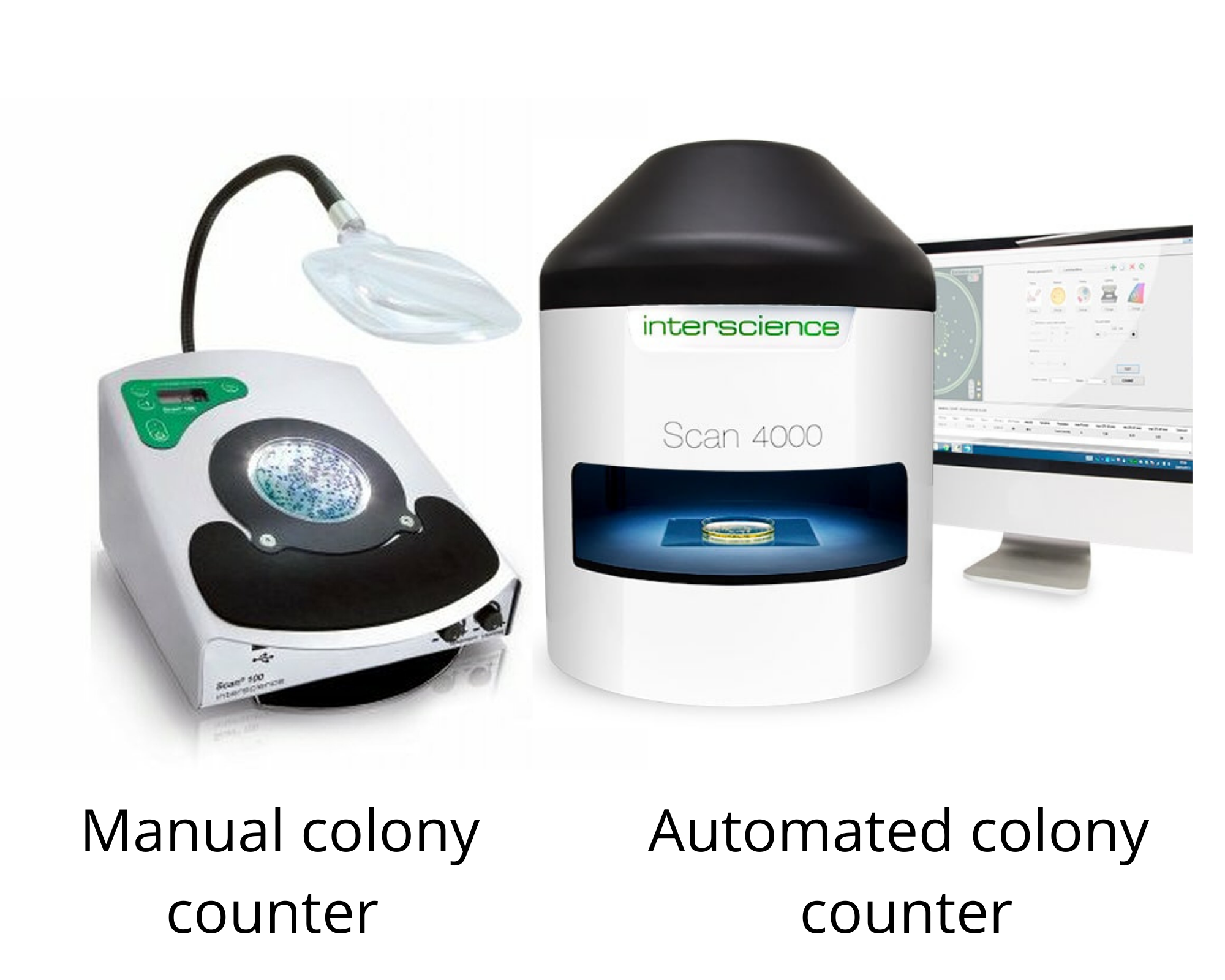

Figure: Colony Counter. Source: https://www.interscience.com/en/

Types of Colony Counters

Colony counters form a spectrum from fully manual to fully automated. The tiers differ in one thing above all: how much of the counting decision is made by a human eye versus by software.

1. Manual colony counters. A magnifying lens and illuminated, gridded background. The technologist does all the counting; the instrument only makes colonies easier to see and divides the plate into squares so none are missed or double-counted.
2. Digital or semi-automated colony counters. An illuminated pressure pad plus a felt-tip pen. The technologist still identifies each colony, but touching it with the pen registers the count automatically on a digital display, removing the tally-keeping error. This is the classic bench workhorse in most diagnostic and teaching labs.
3. Fully automated colony counters. A camera (or scanner) captures an image of the plate, and image-analysis software identifies and counts the colonies with little or no human input. The best systems also measure colony size, read inhibition zones, and calculate CFU/mL directly.

The historic bench instrument that most textbooks call the "Quebec colony counter" sits in the manual-to-digital range: a Petri plate on an illuminated, magnified stage over a ruled counting grid (the Wolffhuegel graticule), read against a dark or light background as the colonies require.

Principle of Manual Colony Counter

The principle is straightforward: the operator registers each distinct colony, and the instrument keeps the tally. Magnification and illumination are aids that make colonies visible, not the counting mechanism itself. In a digital (pressure-pad) counter, the plate sits on an illuminated, pressure-sensitive pad and the operator touches each colony with a felt-tip pen. The pressure of the touch increments the count on a digital display, so no colony is missed or counted twice and the operator does not have to keep a running total in their head.

A gridded background (the Wolffhuegel graticule) divides the plate into squares, so crowded, small colonies can be counted square by square. A switchable dark or light background improves the contrast of translucent versus opaque colonies, and a magnifying lens on a flexible arm enlarges the field. Better models average multiple plates and export the count to a computer over USB.

Even with these aids, throughput is limited and the count is only as consistent as the operator. When more than one technologist counts the same crowded plate, the totals can differ, which is the main reason high-throughput labs move to automated systems.

A bacterial colony is a visible cluster of bacteria on a solid medium, arising from a single colony-forming unit (CFU).

Principle of Automatic Colony Counter

The principle is capture, then analyze. A digital imaging device (a document scanner, digital camera, webcam, or CCD) captures an image of the plate. Software then digitizes that image and applies segmentation, using single or multi-threshold processing together with steps like gray scaling and filtering, to separate the colonies from the background and detect each one. Because the whole count depends on this image, laboratories without their own counter can even send plate images over the internet to a lab that has the analysis software.

Since the count is only as good as the image, illumination is the critical variable. The contrast between colonies and background varies widely, so one of three lighting methods is chosen to suit the sample:

- Transmission: for routine high-contrast colonies on a relatively transparent background.

- Dark-field: for high-contrast colonies on an opaque background.

- Reflection: for low-contrast colonies on a fairly transparent background.

A modern automated counter uses a color camera and RGB LED lighting to capture a high-contrast image, and can resolve colonies down to roughly 40 µm and measure inhibition zones to a fraction of a millimeter, well beyond what the eye reads reliably.

The hardest engineering problem is lighting the plate evenly. A Petri dish is transparent and reflective, so ordinary lighting throws reflections and edge artifacts that the software may mistake for colonies, inflating the count. To eliminate this, some manufacturers (for example, Interscience on its Scan® series) light the plate through a white diffusing dome that produces even 360° illumination with no reflections or shadows. It is a good reminder that an automated count is only as good as the image it starts from.

How the Colony Count Becomes a CFU/mL Value

A colony counter gives you a number of colonies on a plate. That number is only meaningful once it is tied back to the dilution and the volume plated, because each countable colony is assumed to have grown from a single colony-forming unit (CFU).

Two rules govern this:

1. The 30–300 rule. Only plates with 30 to 300 colonies are counted. Below 30, random variation makes the estimate unreliable; above 300, colonies merge and are undercounted. Counters help most exactly in this range, where the plate is crowded enough to strain the eye but still resolvable.
2. The calculation. CFU per mL = (number of colonies counted) ÷ (dilution factor × volume plated in mL).

The counting instrument sits at the end of this workflow. The dilution and plating steps that produce a countable plate are covered in detail in the serial dilution, pour plate, and spread plate methods.

Uses of Colony Counters

1. Clinical microbiology. Quantifying urine cultures against the significant-bacteriuria threshold, and any specimen where the count guides the report.
2. Water and environmental testing. Heterotrophic plate counts and coliform enumeration for drinking-water safety.
3. Food and dairy microbiology. Total viable counts to check spoilage risk and hygiene compliance.
4. Pharmaceutical QC. Bioburden and sterility-related counts for batch release.
5. Research and antibiotic testing. Viable-count assays, kill curves, and (on automated systems) reading inhibition-zone diameters.
6. Across all of these, the counter's job is the same: turn a plate of colonies into a defensible, reproducible number.

Advantages of Automated Colony Counter

Automated colony counter has many advantages. Some of them are:

• It takes less than 10 seconds to take a picture of a Petri plate with colonies, and the software analyzes it quickly. Hence decreasing the time required for counting.
• Since software counts colonies, it increases accuracy and reduces manual labor.
• The counting of multiple plates becomes hassle-free.

How to Remember

1. The three tiers, by who does the counting. Manual = you count and you tally. Digital = you count, the pen tallies. Automated = the camera counts and tallies. Each step up hands one more job to the machine.
2. 30–300, the countable window. Under 30 the number is too noisy to trust; over 300 the colonies merge and you undercount. "Too few to be sure, too many to separate" brackets the range you actually count in.

Key exam facts in one table

Where Students Get Confused

• "One colony = one bacterium." No. One colony grows from one colony-forming unit (CFU), which may be a single cell or a small clump. This is why counts are reported as CFU, not as cells.
• "The counter gives the CFU/mL." Not by itself, on manual and digital instruments. It gives colonies per plate; you still apply the dilution factor and plated volume. Only some automated systems compute CFU/mL directly.
• "Count every plate." No. Only plates in the 30–300 range are counted; others are recorded as TNTC (too numerous to count) or too few.

References

1. Khandpur, R. S. (2019). Colony Counter, Automated. In Compendium of Biomedical Instrumentation (pp. 491–494). Wiley. https://doi.org/10.1002/9781119288190.ch95
2. Tille, P. M. (2022). Bailey & Scott's Diagnostic Microbiology (15th ed.). Elsevier.
3. Procop, G. W., et al. (2017). Koneman's Color Atlas and Textbook of Diagnostic Microbiology (7th ed.). Wolters Kluwer.
4. Goldman, E., & Green, L. H. (Eds.). (2015). Practical Handbook of Microbiology (3rd ed.). CRC Press.
