BACTEC Automated Blood Culture System: Principle, Vials, and How It Detects Growth

A blood culture bottle sits in an incubator, and somewhere in its broth are perhaps one or two bacteria per millilitre. Twenty hours, an alarm flags the bottle positive, hours before anything would be visible to the eye. Nobody looked inside. The machine did not see the bacteria at all. It sensed the carbon dioxide they breathed out. Understanding how a BACTEC system turns that invisible gas into an alarm is the key to understanding automated blood culture, and it is what this page is about.

Automated blood culture systems are the primary choice for detecting pathogens from blood specimens. Instead of manually reading broth-based conventional methods, laboratories use continuously monitored, automated blood culture systems to process blood culture specimens nowadays. These systems have increased the yield of blood cultures, reduced the time to organism recovery, and diminished the laboratory technologist’s hands-on time.

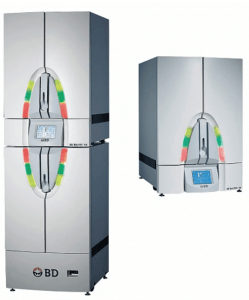

Figure: Bactec Automated Blood Culture System

Several automated blood culture systems are available commercially. Some of the most popular continuous-monitoring blood culture systems are:

1. BACTEC (Becton Dickinson and Company),
2. BacT/ALERT (bioMérieux), and
3. VersaTREK (Thermo Scientific)

BACTEC is the brand name of the automated blood culture system made by Becton, Dickinson and Company (BD). It is not an abbreviation with a formal expansion; it is a product name, often written BD BACTEC. The current instrument line is the BD BACTEC FX series. The BD BACTEC™ Automated Blood Culture System utilizes fluorescent technology to detect organisms’ growth in the blood culture bottles.

The sample to be tested is inoculated into one or more vials and inserted into the BD Bactec fluorescent series instrument for incubation and periodic reading. Each vial contains a chemical sensor that can detect an increase in carbon dioxide (CO₂) produced by the growth of microorganisms.

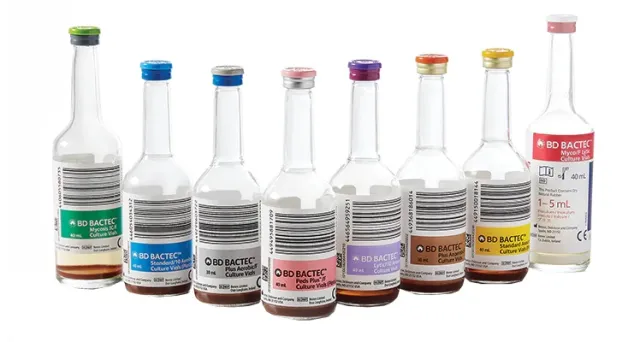

Figure: Bactec Automated Blood Culture System bottle

The instrument monitors the sensor every ten minutes for an increase in its fluorescence, which is proportional to the amount of CO₂ present. A positive reading indicates the presumptive presence of viable microorganisms in the vial.

What the vials contain, and why

All BACTEC vials contain soybean-casein digest broth (a rich general-purpose medium) plus yeast extract, amino acids, sugar, vitamins, and sodium polyanetholsulfonate (SPS). Two ingredients are worth understanding rather than memorizing:

• SPS (sodium polyanetholsulfonate) is an anticoagulant, but that is not its only job. It also inhibits the blood's own defenses, the complement system, some phagocyte activity, and certain antibiotics, so the organisms are not killed by the patient's serum inside the bottle. This is why SPS appears in nearly every blood culture medium.
• Resins (nonionic adsorbing resin and cationic-exchange resin), present in the Plus and Peds Plus vials, bind and neutralize antibiotics that were already in the patient's blood. A patient who has had a first antibiotic dose still carries drug in the bloodstream, and without the resins that drug would suppress growth in the bottle and cause a false-negative. The resins soak it up so the organism can still grow.

Composition of a BD BACTEC Plus Aerobic/F vial (representative):

Types of BACTEC vials

Different broths suit different organisms, and no single vial is best for everything, which is why an aerobic and an anaerobic vial are used together as a set. Depending on the type of suspected pathogen, several broth formulas are available, including media for the recovery of aerobic and anaerobic bacteria, mycobacteria, and fungi.

Beyond these, specialized broths exist for mycobacteria and fungi. BACTEC is particularly noted for improved, faster recovery of Mycobacterium species compared with older methods.

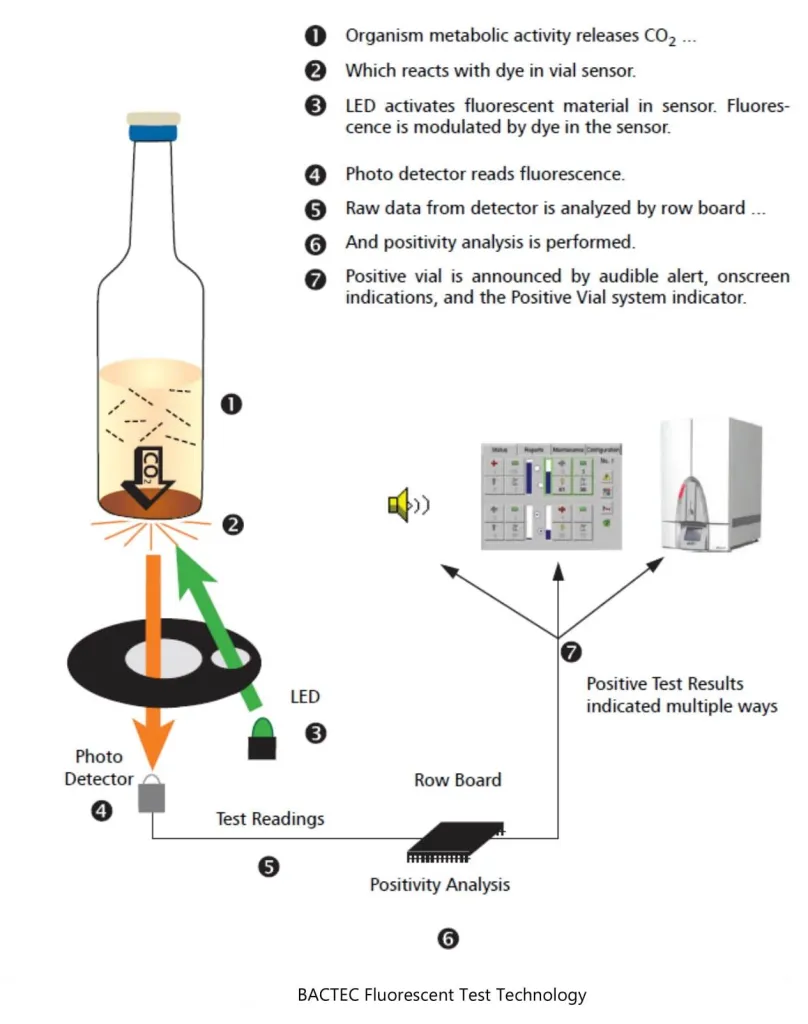

Working principle: how BACTEC detects growth

The whole system rests on one idea: growing organisms release carbon dioxide, and CO₂ can be measured without opening the bottle.

1. Blood is inoculated into a BACTEC vial containing nutrient broth and added to the instrument.
2. If viable organisms are present, they metabolize the nutrients and release CO₂ into the broth.
3. A chemical sensor at the bottom of the vial contains a dye that responds to CO₂. As CO₂ rises, the dye changes, and this alters the amount of fluorescence the sensor gives off.
4. The instrument measures each sensor's fluorescence every 10 minutes. Rising fluorescence, proportional to the CO₂ produced, signals growth.
5. The instrument analyzes the rate and amount of CO₂ increase, not just its presence, so a genuine growth curve is distinguished from background. When the curve crosses the threshold, the vial is flagged positive.

The sensor is read through the glass, so the bottle is never opened during monitoring. This "noninvasive" continuous monitoring is what lets the system watch thousands of bottles at once and flag a positive the moment its growth curve takes off, often within 12 to 48 hours, far sooner than a technologist reading bottles by eye once a day.

Collecting the blood for a BACTEC culture

How the blood is drawn, the volume, the number of sets, the antisepsis, and the timing, matters more to the result than the instrument does, but it is the same for any automated system and is covered in detail separately. In brief: draw before antibiotics if possible, fill each bottle to the correct volume (volume is the biggest driver of yield), use an aerobic and an anaerobic bottle per set, and never refrigerate the bottles before loading.

For the full collection method, see Blood Culture: Indications, Timing, and Volume.

Procedure

1. Remove the flip-off cap and inspect the vial for cracks, cloudiness, or a bulging or indented septum. Do not use a defective vial.
2. Wipe the septum with 70% alcohol (not iodine, which can degrade the septum). Let it dry.
3. Inoculate the recommended volume of blood into the vial. Under-filling lowers recovery.
4. Load the vial into the BACTEC instrument promptly for incubation and monitoring.
5. The instrument reads each vial every 10 minutes and flags positives automatically.
6. When a vial flags positive, the organism is worked up by Gram stain, subculture, identification, and susceptibility testing. See Laboratory Workup of a Positive Blood Culture for that workflow.

BACTEC compared with other automated systems

BACTEC is one of three widely used continuous-monitoring automated blood culture systems. They differ mainly in how they detect growth.

All three continuously monitor sealed bottles, flag positives automatically, and greatly outperform manual blood culture in speed and yield. The core difference is the signal each one reads: BACTEC and BacT/ALERT both track CO₂ (one by fluorescence, one by color change), while VersaTREK measures pressure changes from gas consumed and produced. All three remove or neutralize antibiotics in the blood, BACTEC and BacT/ALERT with adsorbent resins or charcoal, so a recent antibiotic dose does not cause a false-negative.

How to Remember

The machine smells CO₂, it does not see bacteria. The whole system rests on one fact: growing organisms breathe out CO₂, and the sensor reads CO₂, not the organisms. Fluorescence goes up as CO₂ goes up. If you hold onto "it detects the gas, not the germ," the principle is yours.

SPS keeps the organism alive; resins keep the antibiotic away. Two ingredients, two jobs. SPS blocks the blood's own defenses so serum does not kill the bacteria in the bottle. Resins soak up any antibiotic the patient already received. Both exist to stop a false-negative.

Three systems, three signals: fluorescence, color, pressure. BACTEC reads CO₂ by fluorescence, BacT/ALERT reads CO₂ by color, VersaTREK reads pressure. Same goal, three ways to sense growth.

Rate, not just presence. The instrument does not flag the first molecule of CO₂. It watches the growth curve and flags when the rate and amount cross a threshold, which is how it tells real growth from noise.

Aerobic plus anaerobic, because no single bottle catches everything. The vial types exist because different organisms need different broths, which is why a set is a pair.

Key exam facts

Where Students Get Confused

"Does the machine actually see or count the bacteria?" No. It never images the organisms. It detects the carbon dioxide they release as they grow, through a sensor at the bottom of the bottle. Rising CO₂ raises the sensor's fluorescence, and that is what triggers a positive. The bottle is never opened during monitoring.

"What is the full form of BACTEC?" There is not one. BACTEC is a brand name from Becton, Dickinson and Company, not an abbreviation that expands into words. The useful thing to know is not an expansion but the principle: fluorescent detection of CO₂.

"Why are resins in some bottles but not others?" Resins bind antibiotics that are already in the patient's blood. If a patient has had a dose of antibiotic before the culture is drawn, that drug would suppress growth in the bottle and cause a false-negative. The Plus and Peds Plus vials contain resins to soak up the antibiotic so the organism can still grow. Standard vials lack them.

"SPS is just an anticoagulant, right?" It is an anticoagulant, but that is not why it matters most. SPS also inhibits the blood's own bacteria-killing defenses (complement and phagocytes) and some antibiotics, so the organisms survive in the bottle long enough to grow. That second role is why it is in almost every blood culture medium.

"BACTEC, BacT/ALERT, VersaTREK, are they basically the same?" They share the same purpose and all continuously monitor sealed bottles, but they detect growth differently: BACTEC by CO₂ fluorescence, BacT/ALERT by CO₂ color change, VersaTREK by pressure. Knowing which signal each reads is the usual exam point.

"A bottle flagged positive, so the patient has an infection?" A positive bottle means organisms grew in it, but it still has to be worked up. The Gram stain and subculture identify the organism, and the result is read against the clinical picture, since a single positive bottle can also reflect a skin contaminant introduced during collection.

References and further reading

1. CLSI. Principles and Procedures for Blood Cultures. 2nd ed. CLSI document M47. Wayne, PA: Clinical and Laboratory Standards Institute; 2022.
2. Tille PM. Bailey & Scott's Diagnostic Microbiology. 15th ed. St. Louis: Elsevier; 2022.
3. Procop GW, Church DL, Hall GS, et al. Koneman's Color Atlas and Textbook of Diagnostic Microbiology. 7th ed. Philadelphia: Wolters Kluwer; 2017.
