Automatic Pipette and Liquid Handling System: Parts, Working, Uses

During the early months of the COVID-19 pandemic, reference laboratories across the world faced a problem that had nothing to do with reagent supply or test sensitivity: they could not pipette fast enough. A trained technician performing manual RNA extraction can process 48 to 96 samples in a working day. A single robotic liquid handling system running a validated automated extraction protocol can process 384 or more samples in the same period, with lower error rates and without fatigue-related drift in the final hours of a shift.

For most clinical microbiology laboratories, such as a district hospital lab in Nepal, a regional diagnostic center in Nigeria, or a teaching hospital laboratory in the Philippines, an automated liquid handling system remains out of reach financially.

But understanding how these systems work, where they are being deployed, and what problems they solve is increasingly important. Automation is not a distant future for laboratory medicine. It is already the standard in reference laboratories, blood banks, and genomics facilities that students will encounter during training and careers.

A pipette is equipment that helps measure and dispense liquid materials of desired measurements in any laboratory. Since almost all science laboratories require precise and accurate liquid measurement for their experiments, the pipette is used widely.

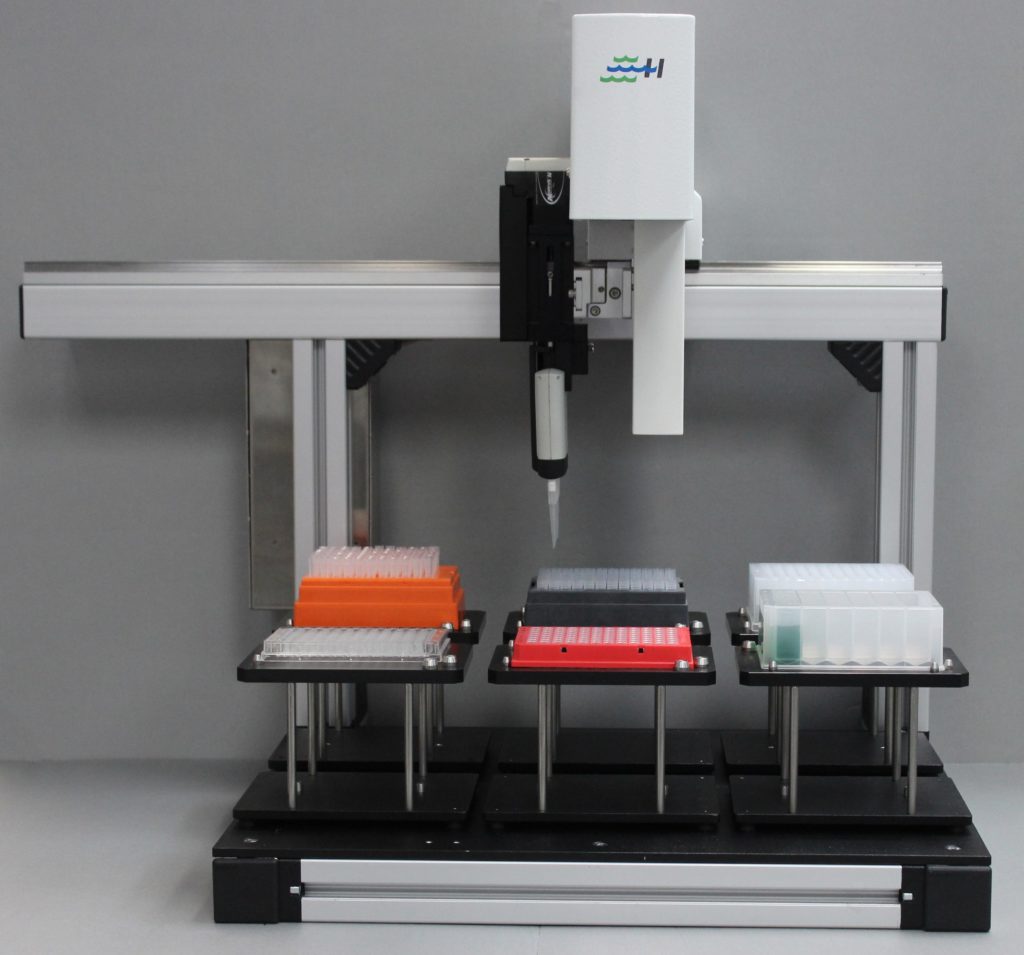

Figure: Solo Liquid Handler by Hudson Robotics

An automated pipette or automated liquid handling system is a pipette operated by software that commands a pipette/robotic liquid handling tool to aspirate the desired amount of sample and dispense it into the required container. Although these pipettes provide automated aspiration and dispensation, changing pipette tips, and placing and holding trays can be either automatic or manual. Commonly, automated pipettes are called liquid handling robots.

Why Automated Pipetting Matters

Manual pipetting is accurate and reliable for small sample numbers. But it has three inherent limitations that become critical at scale:

Fatigue-related error: A technician pipetting 200 samples over six hours applies slightly different plunger pressure, tip immersion depth, and aspiration angle as the session progresses. These variations are small per sample but systematic across the batch. The last 50 samples of the run are pipetted differently from the first 50.

Throughput ceiling: One technician with one micropipette processes one sample at a time. In a high-burden laboratory during an outbreak, this becomes the rate-limiting step for diagnosis.

Contamination risk from repeated human contact: Every manual tip change, every plate movement, every tube uncapping is a contamination opportunity. Automation eliminates most of these touchpoints.

Automated liquid handling systems address all three. In genomics laboratories, automated RNA extraction has been shown to reduce processing time per sample substantially while improving inter-sample reproducibility. In blood banking, automated pipetting for grouping and crossmatching eliminates transcription errors that occur when technicians manually record results from individual tubes.

For microbiology students: even if you never operate a liquid handling robot in your career, you will encounter reports and quality documents generated by these systems. Understanding the principle is essential for interpreting what those systems do and what their error modes are.

Liquid Handling System

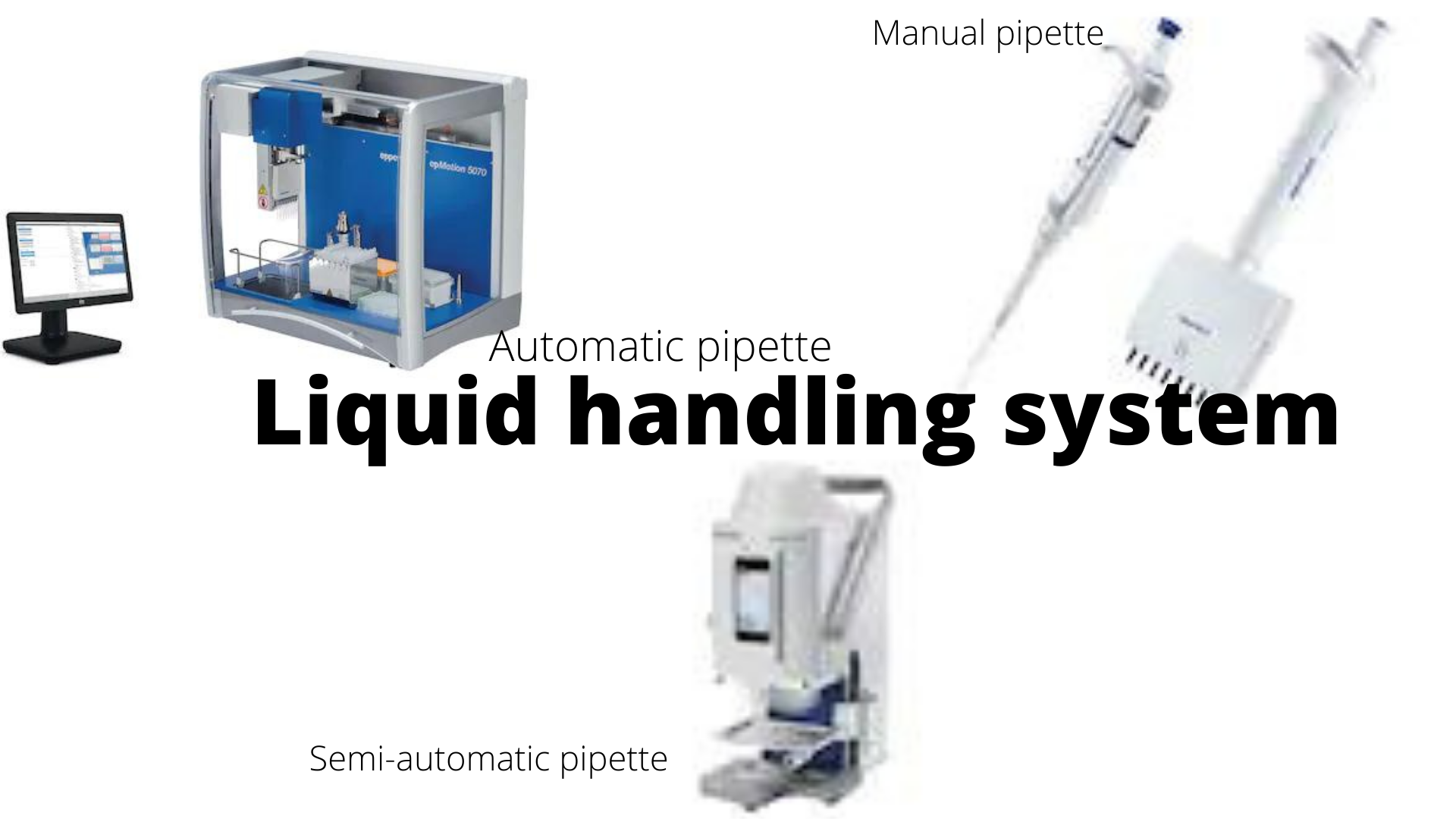

Figure: A benchtop automated liquid handling system.

There are various systems for handling liquids. Pipettes are one of the liquid handling systems. These can be manual, semi-automatic, or automatic.

The manual pipetting requires calibrating the pipettes, entering the desired volume in the pipette, and aspirating and dispensing the liquid by laboratory workers. It works best for laboratories dealing with small sample volumes because only a sample is processed at a time.

The semi-automatic pipettes require user intervention during moving the plates/tube in-between steps or exchanging the tips but not during aspiration and dispensation. It provides handling of 10-100 samples at a time depending on the types. The pipettes can have a single channel or multiple channels for liquid handling.

The automatic pipettes or robotic liquid handlers have robotic arms for moving the plates/tubes and exchanging tips during experiments. Only the step of entering the desired volume in the software requires the intervention of humans, and it provides a walk-away facility. It also helps in handling more than 100 samples at a time.

The three tiers differ mainly in how much the human still does and how many samples the system can handle at once.

Read the table as a spectrum of human involvement: each step to the right removes a human touchpoint, raises throughput and reproducibility, and raises cost and maintenance complexity.

How Does an Automatic Pipette Work?

Pipettes usually work based on two mechanisms; air displacement and positive displacement. The basic principle of pipetting is to displace/dispense (pushing out) a sample volume after aspiration (pulling in). The plunger and piston control these actions. The difference in piston and displacement methods determines the types of pipettes. These methods use plastic tips for displacement.

Besides these, other methods that do not use tips are also available. The technique like acoustic droplet ejection method is one of the non-tip-based pipetting methods.

Air Displacement Method

As the name suggests, the air displacement method for aspirating a certain amount of liquid dispenses almost the exact amount of air. The air displacement method has a piston-cylinder system that helps in measurement. The piston is connected to a plunger that pushes out the air volume equal to the liquid to be aspirated. The aspiration creates an air cushion that separates the aspirated sample (liquid) in a plastic tip from the pipette piston.

Because a compressible air column sits between the piston and the liquid, the delivered volume is sensitive to anything that changes the volume of that trapped air. Warming of the air cushion by the operator's hand, evaporation of a volatile sample into the cushion, and changes in ambient temperature and pressure all shift the effective volume, typically by a few percent if technique and calibration are poor.

This is why air displacement pipettes are calibrated against distilled water at a defined temperature, and why the same instrument can read slightly high or low with hot samples, cold reagents, or volatile solvents. For routine aqueous work these effects are small and predictable, which is why air displacement remains the standard mechanism.

Positive Displacement Method

The air displacement method is not applicable when handling liquid that has more density, higher viscosity, and high air pressure. Since the air displacement method lacks precision while handling such samples due to the air-cushioning, positive displacement overcomes these problems. The method’s accuracy depends on the disposable plastic tips used because these tips have integrated pistons. The piston is coupled to the piston rod of the dispensing devices. The method requires specially designed tips instead of tips from any other system.

The aspiration of liquid in positive displacement occurs by pulling the piston up rather than pushing down, preventing the formation of an air cushion. The pulling up creates a vacuum which draws the liquid into the tips.

Acoustic Droplet Ejection (ADE) Method

ADE is an entirely contactless method of dispensing liquids. A transducer beneath the source well focuses a pulse of sound energy at the liquid surface, raising a small mound and ejecting a tiny droplet upward into an inverted destination plate held above.

Each pulse ejects a fixed, very small droplet, on the order of a few nanoliters, so larger volumes are built up by ejecting more droplets rather than by changing a single setting. The acoustic power required is tuned to the fluid itself, because a viscous or high-surface-tension liquid needs more energy to eject a drop than a thin aqueous one.

Because no tip ever touches the liquid, ADE has the lowest contamination risk of any transfer method, which is why it dominates nanoliter-scale drug screening.

Air vs Positive vs ADE decision table

Uses of Automatic Pipettes in the Laboratory

Automated liquid handling is now routine wherever sample numbers are high and consistency matters.

1. Molecular diagnostics and nucleic acid extraction: The clearest example is COVID-19 testing, where robotic extraction let reference laboratories process hundreds of PCR samples per day. The same systems set up PCR and sequencing reactions, where small, repeatable volumes decide whether a run succeeds.
2. Genomic sequencing: Library preparation involves many precise, repetitive small-volume transfers. Automation cuts hands-on time and improves run-to-run reproducibility.
3. Blood banking and transfusion: Automated pipetting for ABO and Rh grouping and for crossmatching removes the manual transcription step, which is a common source of clerical error in blood group serology.
4. Immunoassays (ELISA): Plate-based assays need identical volumes across 96 or 384 wells. A multichannel or robotic system delivers them faster and more evenly than a hand-held pipette, which tightens the standard curve.
5. Drug discovery and high-throughput screening: This is where contactless acoustic dispensing is used most, transferring nanoliter volumes across thousands of wells.

For most district and teaching laboratories the point is not to operate these systems but to read and trust the reports they generate, and to understand why a reference laboratory can turn around large batches that a manual bench cannot.

Parts and Function of an Automatic Pipette

An automated liquid handling system has two levels of components: the pipetting head that actually moves liquid, and the robotic workstation that positions plates and tips around it.

The pipetting head is a motor-driven version of a standard micropipette. In place of a thumb plunger, a stepper motor drives the piston, which is what gives the system its repeatability. Each channel has a piston, a shaft, and a tip cone onto which a disposable tip is loaded. Single-channel heads move one volume at a time; multichannel heads (8, 16, 96, or 384 channels) transfer a whole row or a whole plate in one stroke. For the anatomy of the piston, shaft, and tip cone in detail, see Micropipette: Parts, Types, and Uses.

The robotic workstation is what turns a motorized pipette into a walk-away system. Its main parts are:

1. Robotic arm (the gantry): Moves the pipetting head in the X, Y, and Z axes across the deck to reach tips, samples, reagents, and destination plates.
2. Deck (worktable): The fixed platform holding labware in defined positions: tip boxes, sample racks, reagent troughs, and microplates. The software knows the coordinates of every position.
3. Dispensing head: The motorized pipetting channel or channels described above, which aspirate and dispense defined volumes.
4. Tip-loading and ejection station: Picks up fresh tips and ejects used tips into waste, so a new tip can be used for every sample when cross-contamination must be avoided.
5. Sensors: Liquid-level and tip-presence sensors feed back to the controller to confirm that a tip is loaded and that liquid was actually aspirated, which is how the system catches empty wells and missed pickups.
6. Wash station (on fixed-tip systems): Where fixed steel or ceramic tips are washed between transfers instead of being discarded, used on some blood bank and high-throughput chemistry platforms.
7. Control system and software: The computer and program that store the protocol, drive the arm, and set volumes, speeds, and mixing steps. This is the only part the operator interacts with during a run.

Benefits of Automated Pipette

The benefits of the automated pipette or liquid handling system are as follows:

• Thorough output. The pipetting obtained by using automation is thorough or accurate. Unlike manual pipetting, there is a decrease in human errors because the machines carry out all the manual work.
• Enhanced reproducibility. The automated pipetting provides increased reproducibility in the laboratory. That means the technique helps obtain consistent results.
• Walk away facility. The machines carry out all the work, and the contamination decreases. Once the information is fed in, they can perform other laboratory duties by running the pipetting process in the background.
• Decreased contamination. Since the machine carries out almost labor work susceptible to contamination, the risk of contamination due to human contact decreases. Likewise, continuous cleaning and maintenance also decrease the contamination.

When to Switch to an Automated Pipette?

• Conversion into a molecular laboratory. An automated pipette helps in many molecular techniques like sequencing and blotting because it provides precision while handling liquid samples. Also, it helps in processing multiple samples at a time.
• One-time investment. The cost of automated pipettes is high compared to manual and semi-automatic pipettes, but it is sustainable in the laboratory that is opting for decreasing manual labor.
• Automation. Since many laboratories are switching to automation, an automated pipetting system is another good addition to the automation of the laboratory.
• Processing a larger sample size. The processing of the liquid samples in your laboratory is increasing, leading to an increase in pipetting tasks. An automated pipette can pipette more than 100 samples in an hour, which helps complete the work faster with accuracy.

Limitation of Automated Pipette

The limitation of automated pipettes are as follows:

• High installation cost. The cost of robotic liquid handlers ranges from approximately $10,000 for entry-level systems to $150,000 or more for fully integrated high-throughput platforms. This makes them inaccessible to most smaller diagnostic laboratories, particularly in resource-limited settings.
• High maintenance cost. The maintenance of an automated pipette needs to be carried out regularly, and the maintenance cost is also high. In addition, trained maintenance workers are scarce.

How to Remember

Manual → Semi-automatic → Automatic: increasing throughput, decreasing human touchpoints. Think of it as a spectrum of human involvement:

• Manual: human does everything (aspirate, dispense, move plates, change tips)
• Semi-automatic: machine aspirates and dispenses; human moves plates and changes tips
• Automatic (robotic): human enters the program; machine does everything else

Each step up the spectrum increases throughput and reproducibility, and increases cost and maintenance complexity.

Air displacement = cushion between piston and liquid. Positive displacement = no cushion. Air displacement is the standard for aqueous samples, because the air cushion is reliable and temperature and viscosity effects are manageable with calibration. Positive displacement removes the air cushion entirely, so the piston contacts the liquid directly. That makes it essential for viscous, volatile, or high-density samples, where an air cushion would compress or expand and produce volume errors.

ADE = sound ejects droplets, no tip needed. Acoustic droplet ejection uses focused sound energy to fling nanoliter droplets from a source well up into an inverted target plate. No tip, no contact, lowest contamination risk. Each pulse throws a fixed tiny droplet, so bigger volumes just mean more droplets. It is the most precise and contamination-free method, but also the most expensive and least common. If asked about contactless pipetting in an exam, ADE is the answer.

The walk-away principle: an automated system runs unsupervised once programmed. This is the single most important practical advantage in a high-throughput laboratory, because the technician can perform other tasks while the system processes samples.

Where Students Get Confused

Which way does the piston move to aspirate? In air displacement the piston is pushed down to expel air and released to draw liquid up behind an air cushion. In positive displacement the piston is pulled up directly, with no air cushion, and it physically contacts the liquid. The tell is the air cushion: air displacement has one, positive displacement does not.

Why can't I use ordinary tips on a positive displacement pipette? Because in positive displacement the piston is built into the tip itself. The tip is not just a container, it contains the moving piston that contacts the liquid, so it must be the manufacturer's matched tip. Ordinary air displacement tips have no piston and will not work.

Accuracy vs precision vs reproducibility. Accuracy is how close the delivered volume is to the target. Precision (and reproducibility) is how close repeated deliveries are to each other. Automation mainly improves precision and reproducibility, because the motor repeats the same stroke every time. It still needs correct calibration to be accurate, so a badly calibrated robot can be very precisely wrong.

Semi-automatic does not mean half the samples. The "semi" refers to human involvement, not throughput. A semi-automatic system still aspirates and dispenses mechanically; the human only moves plates and changes tips between steps.

ADE is not just a faster pipette. It is a different physical principle. There is no tip and nothing touches the liquid. It is used for very small (nanoliter) transfers in screening, not for routine clinical volumes.

Key exam facts
