Gel Filtration Chromatography: Principle, Steps & Uses

A biochemist has just purified a protein, but it is floating in a strong salt solution that will ruin the next experiment. To swap the salt out gently, with no heat and no harsh chemicals, they pour the sample onto a column packed with soft, porous gel beads. The large protein sweeps straight through and comes out first, while the small salt ions get delayed inside the beads. Minutes later the protein emerges in a clean buffer, completely unharmed.

That is gel filtration chromatography, a method that sorts molecules purely by their size. This article explains what it is, the principle behind it, the gels used, how it is done, and where it is applied.

What is gel filtration chromatography?

Gel filtration chromatography is a technique that separates molecules according to their size (more precisely, their size and shape in solution). The sample passes through a column packed with tiny porous gel beads. Small molecules slip inside the pores and take a long, winding path, so they are held back. Large molecules are too big to enter the pores, so they travel only through the spaces between the beads and rush straight out. The result: molecules leave the column sorted by size, with the largest first.

Gel filtration is known by several other names, and exam questions often test them: size-exclusion chromatography (SEC), molecular sieve chromatography, and gel permeation chromatography (GPC). They describe the same principle. (In practice, "gel filtration" usually refers to water-based separation of biological molecules like proteins, while "gel permeation" often refers to separating synthetic polymers in organic solvents.) It belongs to the wider family of chromatography methods.

Why gel filtration matters

Gel filtration is prized because it is gentle. There is no need for extreme pH, heat, or strong binding, so fragile molecules such as proteins and enzymes keep their shape and activity. That makes it a workhorse in biochemistry for two everyday jobs: cleaning up a sample (removing salts or swapping buffers) and estimating the molecular weight of a protein. It is especially valuable to anyone working with macromolecules and their purification.

Principle of gel filtration chromatography

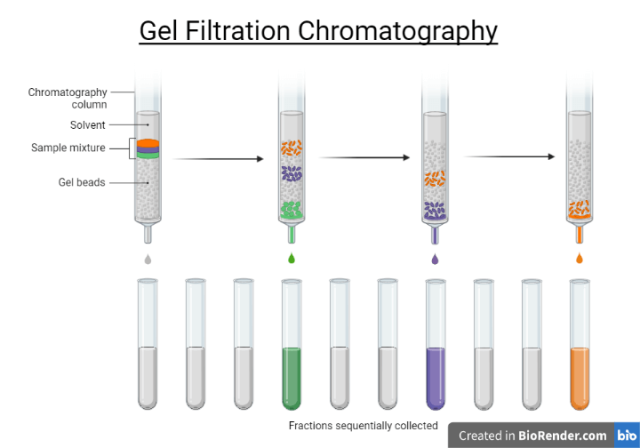

The column is packed with porous beads that act like a molecular sieve, but with a twist that surprises students: it is the large molecules that come out first, not the small ones.

As the sample flows down the column:

• Large molecules cannot fit into the pores of the beads. They are excluded, so they travel only through the liquid between the beads, take the shortest route, and elute first.
• Small molecules diffuse into the pores, wander through the internal maze, and are therefore delayed, so they elute last.
• Medium molecules enter some pores but not others, so they come out in between.

Void volume, elution volume, and Kav

Three simple terms describe this precisely and often appear in exams:

• Void volume (V₀): the volume of liquid between the beads. A molecule too large to enter any pore elutes in one void volume.
• Elution volume (Vₑ): the volume of buffer needed to elute a particular molecule.
• Total volume (Vₜ): the total column volume.

These combine into the partition coefficient Kav:

Kav = (Vₑ − V₀) / (Vₜ − V₀)

Kav ranges from 0 (a fully excluded, very large molecule) to 1 (a small molecule that enters every pore). Because a plot of Kav against the logarithm of molecular weight is a straight line, gel filtration can be used to estimate the molecular weight of an unknown protein by comparing it with known standards.

Parts and materials

• Column: a vertical glass or plastic tube (a traditional lab column is about 1 to 2 cm wide and up to a meter long; modern labs often use ready-packed columns).
• Gel matrix (stationary phase): porous beads whose pore size sets the range of molecular sizes that can be separated (see the table below).
• Mobile phase (buffer): an aqueous buffer that carries the sample; it does not bind the molecules, it simply moves them.
• Fraction collector: collects the eluent in small tubes so the separated peaks can be gathered individually.

Common gel matrices

(For Sephadex, a higher G number means larger pores and a larger separation range.)

Procedure of gel filtration chromatography (step by step)

1. Choose the gel. Pick a gel whose pore size (fractionation range) suits the sizes of the molecules you want to separate.
2. Prepare (swell) the gel. Soak the dry gel in buffer so the beads swell to their working size.
3. Pack the column. Pour the gel slurry into the column to form an even, bubble-free bed, then equilibrate it with buffer.
4. Apply the sample. Layer a small, concentrated sample gently on top of the gel bed without disturbing it.
5. Elute. Run buffer through the column at a steady flow rate. Molecules separate by size as they travel down.
6. Collect and analyze. Gather the eluent as fractions. Large molecules appear in the early fractions, small ones later; each fraction can then be measured or used.

Where students get confused

• Large molecules come out first. This is the opposite of what many expect. Big molecules cannot enter the pores, so they take the short path and elute first; small molecules get trapped in the pores and elute last.
• Nothing is actually "filtered" out. Despite the name, no molecule is removed. Everything comes through the column; they just come out at different times.
• It separates by size, not exactly by molecular weight. Separation depends on the molecule's size and shape in solution, so an elongated molecule can behave like a larger round one.
• Gel filtration is not ultrafiltration. Ultrafiltration pushes solvent through a membrane to concentrate a sample; gel filtration flows a sample through porous beads to sort it by size.
• V₀ versus Vₑ. The void volume (V₀) is fixed for a column, while the elution volume (Vₑ) is different for each molecule.

How to remember

• "Big and busy leave first." Large molecules take the open highway between the beads and exit first; small ones get lost in the side streets (the pores) and arrive late.
• The beads are a maze for the small. Picture small people wandering into every side room while big people walk straight out of the building.
• "Sieve, but upside down." A normal sieve keeps the big pieces back; a gel filtration column lets the big pieces out first.

Applications of gel filtration chromatography

Gel filtration is used for two clearly different jobs, and knowing the difference is important:

• Desalting and buffer exchange: removing salts or small molecules from a protein sample, or swapping one buffer for another, using a small-pore gel such as Sephadex G-25. This is one of its most common lab uses.
• Fractionation and molecular weight estimation: separating a mixture of proteins by size, and estimating the molecular weight of an unknown protein from its elution volume against known standards.

Other uses include:

• Purifying proteins, enzymes, hormones, and antibodies gently, without denaturing them.
• Separating polymers by size (as gel permeation chromatography) in materials science.
• Concentration and clean-up steps in the wider purification of biological molecules.

Advantages of gel filtration chromatography

Gel filtration is gentle and non-denaturing, so it preserves the activity of proteins and enzymes. It uses simple, mild aqueous buffers, gives well-defined separation with narrow bands, needs no binding or harsh elution, and the same column can be reused many times. It also allows the molecular weight of a protein to be estimated easily.

Limitations of gel filtration chromatography

The method has limited resolution: two molecules usually need to differ in size by about 10% or more to be separated cleanly. Only a small sample volume can be loaded at a time, runs can be slow, and the sample is diluted as it passes through the column. Each gel also separates only over a limited size range, so the right gel must be chosen for the job.

Key exam points

References

1. Hong P, Koza S, Bouvier ESP. A review of size-exclusion chromatography for the analysis of protein biotherapeutics. Journal of Liquid Chromatography & Related Technologies. 2012;35(20):2923-2950.
2. Cytiva (formerly GE Healthcare). Size Exclusion Chromatography: Principles and Methods (handbook).
3. Wilson K, Walker J. Principles and Techniques of Biochemistry and Molecular Biology. 7th ed. Cambridge University Press; 2010.
4. Prapulla SG, Karanth NG. Chromatography. In: Encyclopedia of Food Microbiology. 2nd ed. Academic Press; 2014.
