Desiccator: How It Works, the Desiccant and Its Color Change, Types, and Uses

A student opens the desiccator to store a dried reagent and notices the silica gel beads, once blue, have turned pale pink. The desiccator looks fine, sealed and clean, but that color change is a warning: the gel is saturated with water and has stopped drying anything. Anything stored on it now is slowly reabsorbing moisture from the air trapped inside. That single color shift, blue to pink, is how a desiccator tells you whether it is still working, and understanding the desiccant behind it is the difference between a desiccator that protects your samples and one that quietly fails them.

A desiccator is an airtight container used to dry samples and store hygroscopic materials, at atmospheric or reduced (vacuum) pressure. It keeps its interior dry using a drying agent called a desiccant, and is also used to cool heated objects such as crucibles without letting them reabsorb moisture.

Desiccator plays a crucial role in cooling and storing hygroscopic materials as they tend to absorb moisture if left outside in the working environment.

Working Mechanism

The hygroscopic substance known as desiccant present inside the desiccators is responsible to absorb water molecules from samples. Desiccant captures water molecules within its structure and prevents them from escaping back to the environment. Commonly used desiccants are:

• Silica gel: An inert, non-toxic, non-flammable, porous material that traps water molecules in its structure. It is the most commonly used desiccant. Spent silica gel can be regenerated (dried out and reused) by heating it to about 120 to 150°C for a few hours to drive off the absorbed water. Indicating silica gel contains a dye that changes color when saturated, showing when it needs regenerating.
• Montmorillonite clay– Montmorillonite clay is a least expensive, naturally occurring desiccant that works well as a desiccant below 50°C and within the relative humidity range but at a higher temperature, it gives up moisture rather than absorbing it.
• Molecular sieve– Molecular sieve is a synthetic porous crystalline aluminosilicate having uniform pore size. It is the best desiccant that can even remove water molecules trapped within a fully saturated silica gel
• Calcium sulfate– Calcium sulfate is a general-purpose desiccant catered for laboratory use. It is chemically stable, non-disintegrating, nontoxic, and non-corrosive. It also does not release adsorbed water easily even when exposed to ambient temperature.

The Desiccant: How You Know It Is Still Working

A desiccator is only as good as its desiccant, and the most useful skill is knowing when that desiccant has stopped working.

Indicating silica gel changes color. Plain silica gel gives no sign when it is saturated. Indicating gel is treated with a dye so it changes color as it fills with water. The classic type is blue when dry and turns pink when spent. A newer, non-toxic orange-to-green (or orange-to-colorless) type has largely replaced the old cobalt-based blue gel, which is being phased out for safety reasons. Either way, the color change is your signal to act.

Regenerating spent desiccant. Saturated silica gel is not thrown away; it is regenerated by heating it to about 120 to 150°C for a few hours, which drives off the trapped water and restores its drying capacity. Indicating gel returns to its dry color when fully regenerated, which is how you know it is ready to reuse. Good silica gel survives many such cycles.

Choosing a desiccant. Silica gel suits most general drying. Molecular sieves are used when you need the driest possible atmosphere, since they can pull water even from saturated silica gel. Calcium sulfate holds onto absorbed water well and does not readily release it. Clay is the cheapest but fails at higher temperatures. Match the desiccant to how dry the sample must stay and at what temperature.

Desiccator vs Desiccant

The difference between a desiccator and a desiccant are:

Types of Desiccators

There are four types of desiccators. They are:

Standard Desiccator

This desiccator type requires manual operation and monitoring. It is flexible as any type of desiccant can be employed (silica gel beads, activated charcoal, clay molecular sieves, etc) based on economics and convenience. The desiccant is placed below or on any shelf to remove moisture from the chamber. Continuous desiccation saturates the desiccant with the water molecules. The saturated desiccant should be regenerated via heating or replaced. It is economic and convenient to use. It is portable.

Gas Purge Desiccator

A slow steady flow of inert gas (dry nitrogen) is supplied to achieve a low humidity level much faster than desiccants. It works by removing the wet air and replacing it with dry gas, therefore named a gas purge desiccator. It is flexible as it provides the option to close stopcocks and use regular desiccants instead of inert gas.

The wall of the gas purge desiccator consists of a gas inlet and outlet allowing the movement of gas. They can reach the desired humidity level much quicker than standard and automated desiccators and provide a dust-free environment.

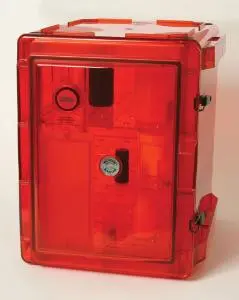

Figure: Gas purge desiccator

Automated Desiccator

This desiccator requires minimal manual monitoring than the standard desiccator because of its ability to regenerate the desiccants. The electric fans and heaters present it continuously regenerate the desiccant by preventing saturation and automatically maintaining a low-humidity environment. It uses silica gel beads as desiccants. These desiccants last for thousands of regeneration cycles. It operates on a set schedule of desiccation followed by a regeneration period.

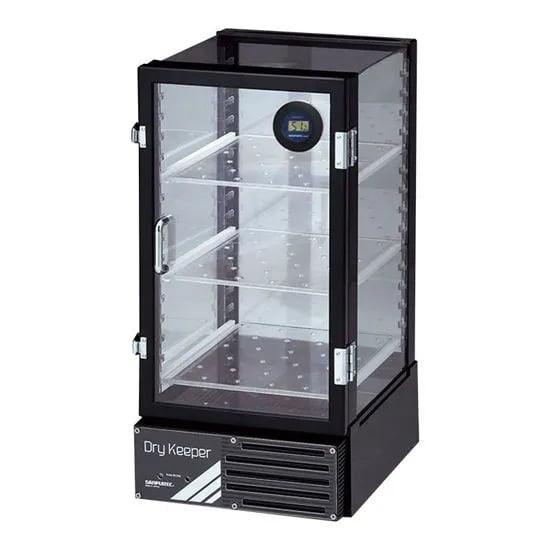

Figure: Automated desiccator

Vacuum Desiccator

A vacuum desiccator removes air and moisture through the use of a vacuum pump. The use of a vacuum pump reduces humidity which helps to evacuate air from the chamber and also reduces oxygen level. Stopcock on vacuum desiccators helps to evacuate the liquid or gas from inside. It can also be operated using desiccants. Vacuum desiccator cabinets are available in round/jar or cubic form.

It is best for long-term storage of the materials that air can damage. Its other use is for degassing techniques. It is flexible since the stopcock is removable to disconnect the vacuum pump to use regular desiccants in it.

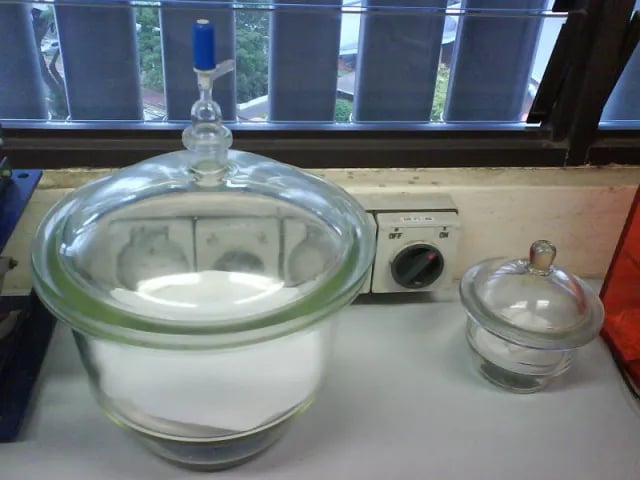

Figure: Vacuum Desiccator

Desiccator Accessories

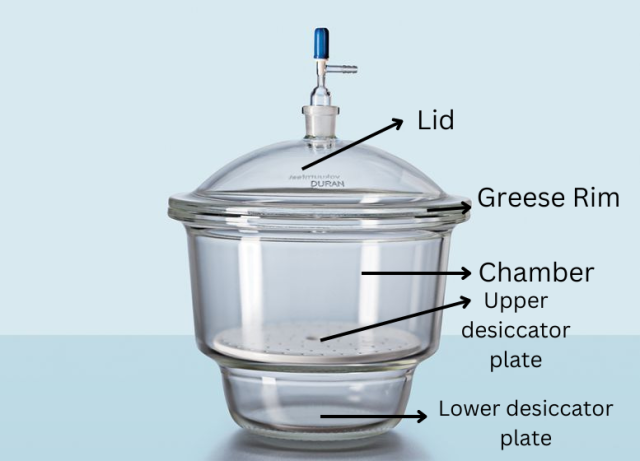

Figure: Parts of a standard desiccator

The desiccator consists of various parts which include:

1. Desiccator Cabinet/Chamber: A desiccator cabinet can be round or in cubic form. Round-style desiccators typically have one shelf and a domed top to provide extra vertical space. Cabinet-style desiccators provide easier accessibility, greater storage capacity, and stacking ability. They often have multiple shelves. Its construction can be of glass, polypropylene, polycarbonate, or acrylic cabinets. The design of this type of desiccator is in a way to maintain a low-humidity atmosphere which is useful in drying hot objects and storing samples for the long term without any damage due to chemical reactions caused by moisture or fungal growth. They can be vacuum and non-vacuum cabinets with different configurations and various height and width options.
2. Lid: The material for the lid is the same as that of the chamber. It is placed on the top of the chamber. Silicone grease applied on the interface of the lid and chamber maintains an airtight seal.
3. Desiccator plate: A pair of mesh or sieves is placed inside the chamber. The upper perforated plate holds crucibles, Petri plates, and other materials along with the samples to be dried or stored. A lower plate holds the desiccant. The plates can be of stainless steel or polypropylene materials.
4. Stopcock: It is present in vacuum desiccators which helps to remove the air and moisture from the chamber.
5. Vacuum pump: It pumps the air and moisture out of the chamber, and accelerates the process of drying. It is present only in vacuum desiccators.

Uses of Desiccator

1. To remove moisture from chemicals, used to make standard solutions like NaCl, KCl, and oxalic acid.
2. To cool heated crucibles to a stable weight in gravimetric analysis, so they reach constant weight on the analytical balance without reabsorbing moisture from the air.
3. For cooling and long-term storage of hygroscopic chemicals like sodium chloride, and sodium hydroxide crystals.
4. To store materials that must be weighed under dry conditions, and to determine the dry weight of compounds such as soil solids, proteins, and sugars.
5. To dry and protect heat-labile and hygroscopic materials, including dried culture media components and some preserved cultures, that moisture would spoil.

Operating the Equipment

Using a round-style desiccator:

• To open the desiccator, slide the lid gently. The lid is placed with an airtight seal so, opening and closing of the lid required precaution.
• Grasp the knob with one hand and the base with another hand. Lifting the lid should be avoided.
• Place the crucible/ samples on the desiccator plate. Don’t keep the lid open for a long time.
• To close the equipment , place the lid gently on top and close slowly by applying a mild force till it closes. The lid should be rotated to ensure that an airtight seal is created.
• Rub a small amount of silicon grease around the flat surface of the lid to make it airtight.
• Leave it undisturbed. Open the lid only if it is necessary for a short period.

Using a vacuum-sealed round-style desiccator:

1. Open stop-cock on top to release the vacuum inside at the time of opening.
2. Try sliding the lid. If not possible, use a spatula to create a rift between the lid and the body.
3. On hearing the hissing sound of vacuum release, slide the top cover by holding the bottom firmly with the other hand.

Precautions

• Let very hot objects cool briefly before sealing them in. A hot crucible warms the air inside, which then contracts as it cools and creates a partial vacuum, making the lid hard to open later. Cool ignited crucibles for a short time first, then transfer them to the desiccator to finish cooling.
• Do not place a wet crucible or other wet materials into the equipment as it can hamper the desiccant.
• Avoid placing any substances that rapidly lose moisture leading to the loss of their efficacy.
• Store the chemicals that are compatible with the chemical composition of the chamber/cabinet. For example: Some chlorinated solvents degrade plastics; Hydroxide solutions dissolve aluminum and etch glass; Hydrofluoric acid dissolves glass
• Avoid storing materials that are highly reactive with water such as sodium metal. Contact with humid air, while opening the lid can lead to a violent reaction.

How to Remember

Blue is dry, pink is spent. The indicating gel color is the whole status of the desiccator at a glance. Blue (or orange, in the newer gel) means it is working; pink (or green) means it is saturated and drying nothing. If you remember one thing about a desiccator, remember to check the color.

Cool before you seal, slide don't lift. The two handling rules that prevent the two common failures. Seal a hot object and the cooling air locks the lid shut; lift the lid instead of sliding it and you risk cracking the ground-glass seal or losing the vacuum grip. Cool first, then slide.

Key Exam Facts in One Table

Where Students Get Confused

Desiccator vs. desiccant. The desiccator is the airtight container; the desiccant is the drying agent (silica gel and others) placed inside it. The container does nothing without the desiccant, and the desiccant needs the sealed container to work.

What the color change means. Students think pink or green gel is a different or defective product. It is the same gel, saturated. The color signals it needs regenerating, not replacing.

Why you cannot seal a hot crucible straight in. Sealing a hot object traps warm air that contracts as it cools, creating a vacuum that locks the lid. Cool the object briefly first, then let it finish cooling inside.

Vacuum vs. standard desiccator. A standard desiccator relies only on the desiccant. A vacuum desiccator adds a pump to remove air and moisture faster and protect air-sensitive materials. Both can use desiccants; the vacuum type just works faster and dryer.
