High-Performance Liquid Chromatography (HPLC): Principle, Parts, Uses

Every tablet, capsule, and vaccine you have ever taken had to pass a purity and dosage check before it reached you, and the instrument that does most of that checking is the HPLC. High-performance liquid chromatography is the workhorse of modern analytical labs. It can pull apart a mixture of very similar molecules, tell you exactly how much of each is present, and do it for almost anything that dissolves in a liquid. This article explains what HPLC is, the principle behind it, its parts, how it works, the main types, and where it is used.

What is HPLC?

High-performance liquid chromatography (HPLC) is a technique used to separate, identify, and measure the components of a mixture dissolved in a liquid. It is a modern, high-pressure form of column chromatography: a liquid (the mobile phase) is pumped under high pressure through a column tightly packed with very fine particles (the stationary phase). Because the particles are so small and evenly packed, HPLC separates mixtures far more sharply and quickly than old-fashioned gravity-fed column chromatography.

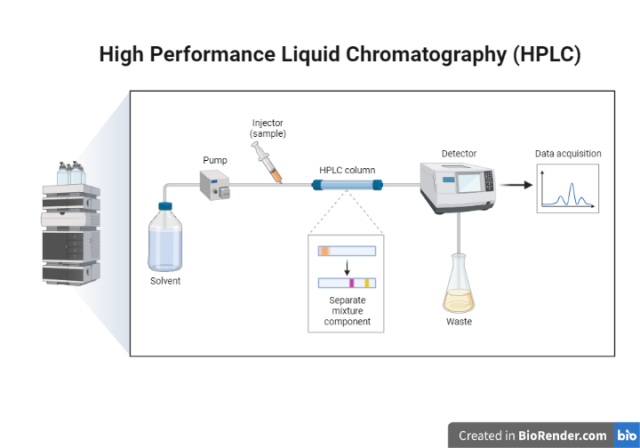

Figure: High-Performance Liquid Chromatography (HPLC)

The "high performance" in the name comes from that high pressure and the fine packing, which together give fast, high-resolution separations. (HPLC was once also called high-pressure liquid chromatography for the same reason.)

Why HPLC matters

HPLC is the gold standard for analyzing liquids in pharmacy, medicine, and research. It is precise, highly sensitive, works on non-volatile and heat-sensitive substances that gas chromatography cannot handle, and gives both a qualitative answer (what is present) and a quantitative one (how much). Almost every drug on the market is tested by HPLC for purity and dose, which is why it is one of the most widely used instruments in analytical science.

Principle of HPLC

The principle is the same tug-of-war behind all chromatography, run at high pressure. The sample is injected into a stream of mobile phase and pushed through the packed column. Inside, each component is pulled two ways: it interacts with the stationary phase (which holds it back) and it dissolves in the mobile phase (which carries it forward).

Components that interact strongly with the stationary phase move slowly and take longer to come out; components that prefer the mobile phase move quickly and come out first. The time each component takes to travel through the column and reach the detector is its retention time, which is characteristic of that compound under fixed conditions and is used to identify it. The detector turns each component into a peak, and the area under each peak shows how much is present.

Parts of an HPLC system (instrumentation)

An HPLC is built from six main parts, in the order the mobile phase travels:

1. Solvent reservoirs: bottles holding the mobile-phase liquids (for example water and an organic solvent such as acetonitrile or methanol).
2. Pump (solvent delivery system): pushes the mobile phase through the system at a steady flow rate (typically about 0.5 to 2 mL per minute) and at high pressure, up to around 400 bar (about 6,000 psi). This high pressure is what forces the liquid through the tightly packed column.
3. Degasser: removes dissolved air from the mobile phase, because bubbles would disturb the flow and the detector signal.
4. Injector (autosampler): introduces a precise, tiny volume of sample into the flowing mobile phase, usually through a sample loop, either manually or with an automated autosampler.
5. Column: the heart of the system, a short steel tube (about 5 to 25 cm long) packed with very fine particles (commonly silica coated with C18 chains). This is where separation happens.
6. Detector: senses each component as it leaves the column, most often a UV-Vis or photodiode-array (PDA) detector, and passes the signal to a data system (computer) that draws and analyzes the chromatogram.

How does HPLC work? (step by step)

1. The pump pushes degassed mobile phase through the column at high pressure and constant flow.
2. The injector introduces a small, exact volume of the sample into the stream.
3. As the sample travels through the column, its components separate according to how strongly each interacts with the stationary phase.
4. Each component reaches the detector at its own retention time and produces a peak.
5. The data system records the peaks as a chromatogram, using peak position to identify each compound and peak area to measure how much is present.

Types of HPLC

HPLC is grouped by how the stationary and mobile phases are set up:

Isocratic versus gradient elution

• Isocratic elution: the mobile-phase composition stays the same throughout the run. It is simple and good for easy mixtures.
• Gradient elution: the mobile-phase composition changes during the run (for example, the proportion of organic solvent is gradually increased). This separates complex mixtures with a wide range of compounds and speeds up the run.

Where students get confused

• Reverse phase is the normal choice, despite the name. "Normal phase" is the older setup (polar column, non-polar solvent). "Reverse phase" (non-polar column, polar solvent) came later but is now used for the large majority of separations, so it is the one you will meet most.
• In reverse phase, polar compounds come out first. They prefer the polar mobile phase and spend less time on the non-polar column. In normal phase it is the opposite.
• HPLC is column chromatography under pressure. The difference from an ordinary gravity column is the very fine particles and the high-pressure pump, which is what gives the sharp, fast separations.
• HPLC is for liquids and non-volatile compounds; GC is for volatile ones. If a compound would decompose or cannot be vaporized, use HPLC, not gas chromatography.
• Retention time depends on the conditions. It identifies a compound only when the column, mobile phase, flow, and temperature are kept the same.

How to remember

• "HP = High Pressure." The pump forcing liquid through a tightly packed column is the whole idea behind "high performance."
• Reverse phase: "polar hates the oily column, so it leaves first." The C18 column is oily (non-polar), so polar compounds do not stick and elute early.
• C18 is the default column. If you picture one HPLC column, picture a reverse-phase C18, because that is what most labs use.

Applications of HPLC

• Pharmaceutical industry: checking drug purity, measuring the exact dose in a tablet, and testing stability. This is HPLC's biggest use.
• Clinical and biochemical testing: measuring vitamins, hormones, and drug levels in blood and other body fluids.
• Forensic science: detecting drugs, steroids, and poisons and measuring their concentration.
• Food and beverage industry: analyzing additives, preservatives, sweeteners, and contaminants.
• Environmental testing: detecting pesticides and pollutants in water and soil.
• Research and microbiology: separating and identifying proteins, peptides, and microbial metabolites.

Advantages of HPLC

HPLC offers high resolution and sensitivity, is fast and highly reproducible, and gives accurate quantitative results. It works on a huge range of samples, including large, non-volatile, and heat-sensitive molecules that gas chromatography cannot handle, and it is easily automated for routine testing.

Limitations of HPLC

The main drawbacks are cost and complexity: the instrument and its columns are expensive, it needs a trained operator and regular maintenance, and it uses organic solvents that must be handled and disposed of carefully. No single detector suits every compound, so method development can take time, and coupling HPLC to a mass spectrometer (LC-MS) is often needed for confirming unknowns.

Key exam points

References

1. Horvath C, Preiss BA, Lipsky SR. Fast liquid chromatography: an investigation of operating parameters. Analytical Chemistry. 1967;39(12):1422-1428.
2. Snyder LR, Kirkland JJ, Dolan JW. Introduction to Modern Liquid Chromatography. 3rd ed. Hoboken: Wiley; 2010.
3. Harris DC. Quantitative Chemical Analysis. 9th ed. New York: W. H. Freeman; 2015.
4. Dong MW. Modern HPLC for Practicing Scientists. Hoboken: Wiley; 2006.
