Counterimmunoelectrophoresis (CIE): Principle, Procedure, Uses

A charged molecule moving through a gel in an electric field is ordinary electrophoresis. Now watch a molecule that is not charged move through the same gel, steadily, in a predictable direction, and meet another molecule coming the other way.

That is what happens in counterimmunoelectrophoresis, and it is the reason the technique is worth understanding even though newer methods have replaced it at the bench.

Two wells are punched in a thin agarose gel. An antigen goes in one, an antibody in the other, and the current is switched on. The antigen, if it is acidic, carries a negative charge in the alkaline buffer and migrates toward the anode, exactly as electrophoresis predicts. The antibody carries almost no net charge at the working pH. It should barely move at all. Instead it travels steadily backward, toward the cathode, and straight into the path of the oncoming antigen. Where the two meet in the right proportions, a thin white line of precipitate appears.

Two questions are worth holding onto. Why does an almost uncharged antibody move at all? And why does it move in the one direction that carries it to meet the antigen head-on? The answer to both is a phenomenon the technique is named for, and it is not electrophoresis.

What is counterimmunoelectrophoresis?

Counterimmunoelectrophoresis (CIE) is a rapid immunoprecipitation test in which antigen and antibody are driven toward each other through an agarose gel by an electric field, meeting within an hour to form a visible precipitin line. It is an accelerated form of Ouchterlony double diffusion, which relies on passive diffusion and takes a day or more.

It works because the two reactants move for two different reasons. Bacterial capsular polysaccharide antigens are acidic, so at alkaline pH they carry a strong negative charge and migrate toward the anode. Antibodies are close to neutral at that pH and have little electrophoretic mobility of their own, but they are swept toward the cathode by electroendosmosis, the bulk flow of buffer through the negatively charged gel. The two travel in opposite directions along the same line and collide in the middle.

Counterimmunoelectrophoresis (CIE) is a modification of the Ouchterlony double diffusion method in which an electric current drives antigen and antibody toward each other, so that a precipitin line forms within an hour instead of over one to two days. It is also known as counter-current immunoelectrophoresis (CCIE), counterelectrophoresis, immunoelectroosmophoresis, and electrosyneresis. That third name is worth noticing, because it names the mechanism.

## Principle of CIE Test

CIE is run in an agarose gel bathed in an alkaline barbital buffer, usually around pH 8.4. The antigen and the antibody move toward one another, but for two entirely different reasons, and understanding the difference is the whole of this technique.

Why the antigen moves toward the anode. Bacterial capsular polysaccharides are acidic. Their carboxyl and phosphate groups are ionized at pH 8.4, so the antigen carries a strong net negative charge. Like any anion in an electric field, it migrates toward the positive electrode, the anode. This is ordinary electrophoresis.

Why the antibody moves toward the cathode. Antibodies are a different case. The isoelectric points of IgG molecules cluster around the buffer pH, so at pH 8.4 a typical antibody carries very little net charge, and the electric field exerts almost no pull on it. A molecule with no net charge cannot be moved by an electric field at all. Something else must be moving it.

That something is the gel. Agarose carries fixed negative charges, from sulfate and pyruvate groups on its polymer backbone. These attract positively charged counter-ions out of the buffer. When the current is applied, those mobile cations stream toward the cathode, and because they are hydrated they drag bulk buffer along with them. The entire liquid phase of the gel therefore flows toward the cathode. This bulk flow is called electroendosmosis, or electroosmotic flow.

The antigen, strongly negative, swims upstream against that flow and still reaches the anode. The antibody, essentially uncharged, cannot swim, so it simply floats downstream toward the cathode.

The two reactants therefore travel in opposite directions along the same line, which is what "counter" in counterimmunoelectrophoresis refers to. The older name, immunoelectroosmophoresis, states the mechanism outright.

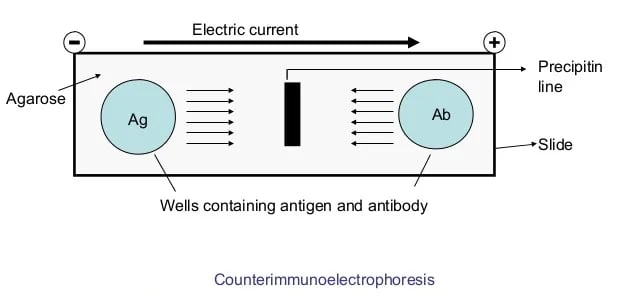

Figure: Counterimmunoelectrophoresis

What happens when they meet. Somewhere between the two wells, antigen and antibody arrive in optimal proportions. This is the zone of equivalence, where the two cross-link into a lattice large enough to fall out of solution. A thin white precipitin line becomes visible in the clear agarose. Where either reactant is in gross excess, the lattice cannot assemble and no line forms, which is a source of false negatives.

Procedure of CIE

1. Prepare the gel. Pour a thin layer of agarose (about 1%) in barbital buffer, pH 8.2 to 8.6, onto a glass slide or plate, and allow it to set.

2. Punch two parallel rows of wells, about 3 to 5 mm apart, aligned so that each antigen well faces an antibody well across the gap.

3. Load the wells, and get the sides right. This is where students go wrong.

The antigen migrates toward the anode, so it must start on the cathodal side. The antibody is carried toward the cathode, so it must start on the anodal side.

Each reactant begins at the electrode it is travelling away from. Put them the wrong way round and they migrate apart, and the test can never be positive.

Load the patient sample (CSF, serum, or urine) into the cathodal wells and the known antiserum into the anodal wells. Always include a known positive control antigen and a negative control.

4. Run the gel. Place it in the electrophoresis tank with wicks connecting each end to the buffer compartments, and apply a field of roughly 4 to 8 V/cm for 30 to 60 minutes. (Verify the field strength and run time against your bench protocol.)

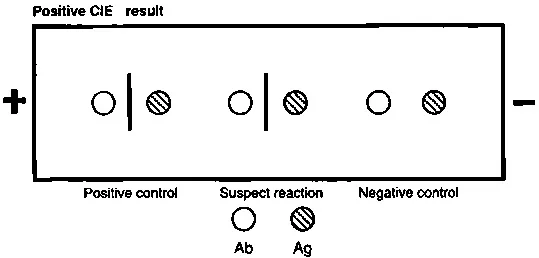

5. Read the result. Examine the gel over an oblique light source against a dark background. A thin white precipitin line between an antigen well and its facing antibody well is a positive result. No line is a negative result, provided the positive control produced one.

6. Optional. For faint lines or a permanent record, wash the gel in saline to remove unprecipitated protein, dry it, and stain with Coomassie brilliant blue or amido black.

The whole procedure takes about an hour, against twenty-four to forty-eight hours for Ouchterlony double diffusion.

Salient features

1. Modification of the Ouchterlony method.
2. An unknown bacterial antigen and a known specific antibody move towards each other in an electrical field.
3. Most bacterial capsular antigens are negatively charged at slightly alkaline pH. The important exceptions are Streptococcus pneumoniae serotypes 7 and 14, whose capsular polysaccharides carry no ionizable acidic groups and are therefore uncharged. Having no net charge, they do not migrate toward the anode, never meet the antibody, and cannot be detected by this method at any concentration.
4. When Ag and Ab meet in optimal proportions, a line of precipitation appears within the agar matrix.
5. The entire procedure takes about one hour.
6. CIE can be used to test for any antigen against which a specific antiserum is available. 7. CIE is less sensitive than latex particle agglutination, and considerably less sensitive than nucleic acid amplification tests.
7. Sensitivity less than that of particle agglutination (0.01-0.05 mg/ml) of antigen.

Distinguish CIE from the techniques it is constantly confused with

Uses of Counter-immunoelectrophoresis

Counterimmunoelectrophoresis is used to detect capsular polysaccharide antigens of bacteria (Haemophilus influenzae type b, Neisseria meningitidis, Streptococcus pneumoniae) and fungi (Cryptococcus neoformans) in cerebrospinal fluid, and it has also been applied to serum, urine, and sputum.

Its value lies in the partially treated patient. Capsular polysaccharide persists in the CSF long after antibiotics have killed the organism that shed it, so antigen may still be detectable when the Gram stain is blank and the culture is sterile. It has also been used to detect antigens and antibodies outside meningitis, including pneumococcal antigen in sputum and viral antigens in serum.

Limitations of CIE Test

1. CIE is more expensive and more cumbersome than agglutination-based tests.

2. It requires an initial capital outlay for the electrophoresis apparatus and power supply, whereas latex agglutination requires no equipment at all.
3. It consumes relatively large quantities of both antigen and antiserum.
4. It is qualitative. The test reports the presence or absence of a precipitin line, not a concentration.
5. It cannot detect uncharged antigens. Pneumococcal capsular serotypes 7 and 14 do not migrate in the electric field and will always give a negative result.
6. Gross antigen excess prevents formation of the precipitin lattice, producing a false negative. If clinical suspicion is high and no line appears, dilute the sample and repeat.
7. Its sensitivity is lower than that of latex particle agglutination and far lower than that of nucleic acid amplification.

Where CIE stands today

CIE was a genuine advance when the alternative was waiting a day for a diffusion plate, and it remained in routine use through the 1980s. It has since been displaced. Latex particle agglutination is faster, simpler, and more sensitive, and requires no apparatus. For Cryptococcus neoformans, the cryptococcal antigen (CrAg) lateral flow assay is now the recommended standard and detects antigen in serum, plasma, and CSF within minutes. For bacterial meningitis, multiplex PCR panels detect the organism itself rather than its shed capsule, with far greater sensitivity.

CIE survives in teaching, in some reference and veterinary laboratories, and in resource-limited settings where the reagents are cheap and the apparatus is already on the bench. It is also worth knowing because the principle, two molecules driven toward each other by two different forces, is elegant and is examined.

How to Remember

"Counter" means they run at each other. Not counter as in "counter-top," and not counter as in "counting." Counter as in countercurrent: two things travelling in opposite directions along the same line. Antigen one way, antibody the other, collision in the middle. The precipitin line is the crash site.

Antigen is Acidic, so Antigen goes to the Anode. Three A's. Bacterial capsular polysaccharides carry carboxyl and phosphate groups, so at pH 8.4 they are strongly negative and race toward the positive electrode.

The antibody does not swim. It floats. At pH 8.4 an IgG has almost no net charge, so the field barely pulls on it. What carries it is the river: the whole buffer is flowing toward the cathode, because the negatively charged agarose holds fixed anions and the mobile cations drag the water with them as they head cathodally. The antigen is a strong swimmer going upstream. The antibody is a leaf on the current. This is electroendosmosis, and the old name for the whole technique, immunoelectroosmophoresis, says so out loud.

Each reactant starts at the electrode it is running away from. Antigen runs to the anode, so antigen goes in the cathodal well. Antibody drifts to the cathode, so antibody goes in the anodal well. Load them the other way round and they sprint apart, and no line can ever form. If you cannot remember which is which, work out the directions first and the wells fall out of it.

Seven and fourteen won't leave the well. Pneumococcal capsular serotypes 7 and 14 are uncharged. They have nothing for the field to pull on, so they never migrate to meet the antibody. A negative CIE does not rule out pneumococcus. This is not trivia; it is the exception that proves the mechanism.

No line does not always mean no antigen. A precipitin lattice forms only near the zone of equivalence. Flood the gel with antigen and the lattice never assembles, so a massively positive sample can read as negative. If the clinical suspicion is high and the line is absent, dilute the sample and run it again.

Ouchterlony strolls. CIE runs. Same chemistry, same precipitin line, same agar. The only difference is that Ouchterlony waits for random diffusion (a day or two) while CIE puts a current across it (an hour). Everything else about CIE follows from that one decision.

Self-check before you read any CIE plate: Did the positive control produce a line? Is the patient sample in the cathodal well? Could this be a serotype 7 or 14, or an antigen-excess false negative?

Key exam facts in one table

Where Students Get Confused

"If the antibody is neutral, how can an electric field move it?" It cannot, and that is the point. A neutral molecule feels no electrophoretic force. The antibody moves because the gel's liquid contents are moving. Agarose carries fixed negative charges, which attract mobile cations from the buffer; when the current is applied, those cations stream toward the cathode and drag solvent with them. The entire buffer phase flows cathodally. The antigen, strongly negative, swims against that flow and still reaches the anode. The antibody, essentially uncharged, has nothing to swim with, so it drifts along with the flow toward the cathode. The technique's alternative name, immunoelectroosmophoresis, is a description of exactly this.

"Which well takes the antigen?" Derive it; do not memorize it. The antigen travels toward the anode, so it must be loaded on the cathodal side in order to have somewhere to travel. The antibody travels toward the cathode, so it must be loaded on the anodal side. Each reactant starts at the electrode it is moving away from. Loading them the other way round drives them apart and guarantees a negative result no matter how much antigen is present.

**"Why is it called counterimmunoelectrophoresis?"** Because the two reactants move counter to one another. In ordinary electrophoresis everything in the gel travels the same way. Here, two different forces act on two different molecules, sending them in opposite directions along a single axis so that they must meet. The counter-movement is the whole design.

"How is this different from immunoelectrophoresis? The names are nearly identical." They are different techniques. In classical immunoelectrophoresis (Grabar and Williams), a protein mixture is separated by electrophoresis first; afterwards, antiserum is placed in a trough and allowed to diffuse passively, forming arcs. Electrophoresis and immunodiffusion happen in sequence. In CIE, they happen at the same time, and the electrophoresis is what brings the reactants together rather than what separates them. Rocket electrophoresis is a third relative: antigen is driven into a gel already containing antibody, and the height of the resulting rocket-shaped precipitate is proportional to antigen concentration, making it quantitative.

"CIE was negative, so the child does not have pneumococcal meningitis." Not established. Two traps. First, pneumococcal capsular serotypes 7 and 14 carry no charge at pH 8.4. They do not migrate toward the anode, so they never meet the antibody, and CIE cannot detect them at any concentration. Second, if antigen is in gross excess, no precipitin lattice forms and the plate reads negative despite an enormous antigen load. A negative CIE excludes very little on its own.

"Why bother detecting a shed capsule instead of the organism?" Because the capsule outlives the organism. A child who received an antibiotic before the lumbar puncture may have a sterile culture and a blank Gram stain, while the CSF is still full of capsular polysaccharide. Antigen detection was designed precisely for the partially treated patient, which in practice is a great many of them.

"Is CIE still used?" Rarely, in routine diagnostics. Latex particle agglutination is faster, simpler, and more sensitive; the cryptococcal antigen lateral flow assay has taken over for Cryptococcus; and multiplex PCR now finds the organism itself rather than its debris. CIE persists in teaching, some reference and veterinary laboratories, and settings where the reagents are cheap and already present. Know the principle, and know that it is no longer the front-line test.
